FFS ANSI Code

FFS ANSI is a PAR64 lamp with a GX16d base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. The beam angle is 24° x 48°. It has a Prismatic finish. The average rated life is 800 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FFS lamps.

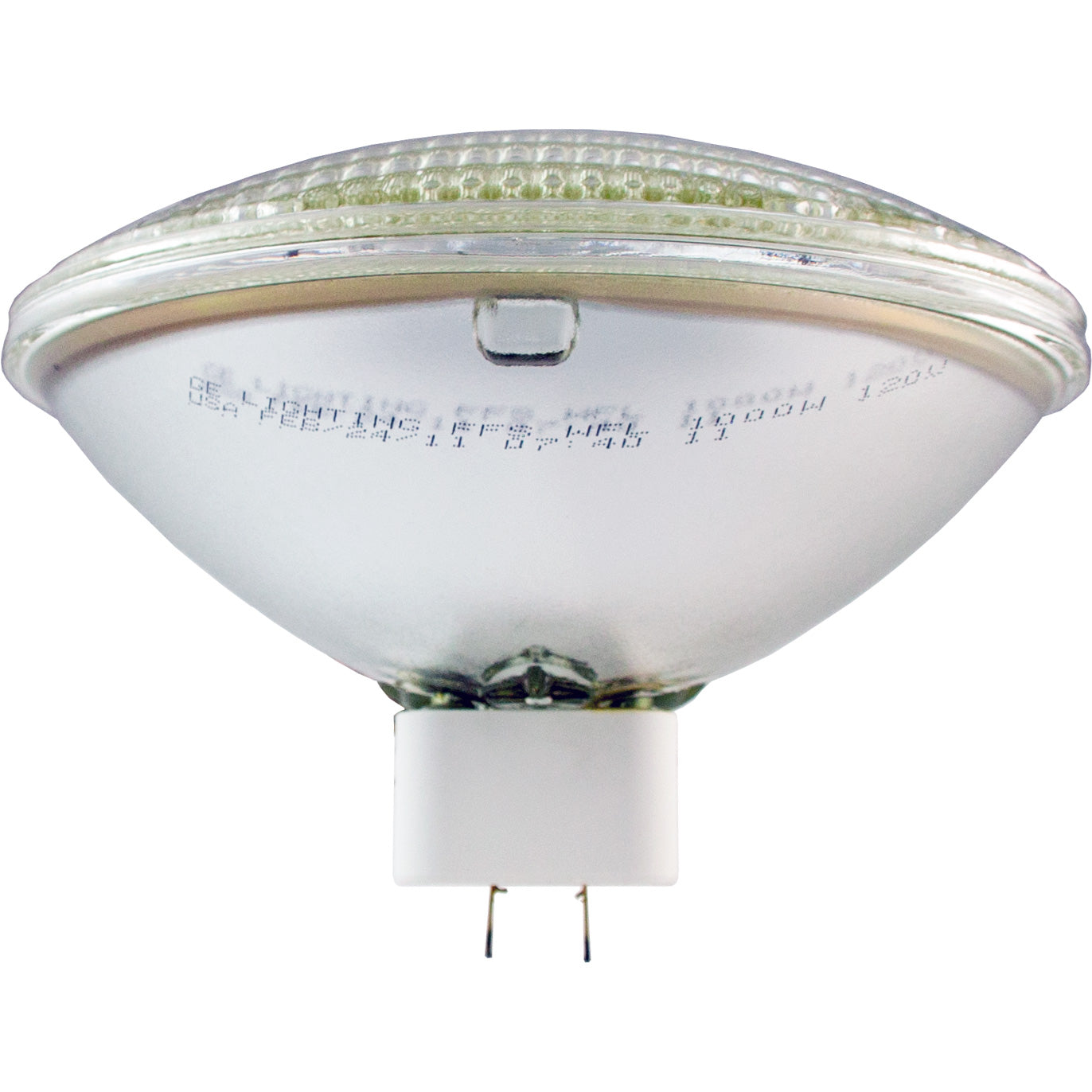

FFS Photograph

FFS

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Beam Angle24° x 48°
Beam SpreadWide Flood
Candlepower1100
Color Temperature3200
Light Center Length (LCL)4
Lumens40000

Physical Characteristics

BaseGX16d
Bulb ShapePAR64
FilamentCC-6
FinishPrismatic
Max Overall Length (MOL)6

Operating Characteristics

Burn PositionAny
Life Hours800

General Information
Lamp CodeFFS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

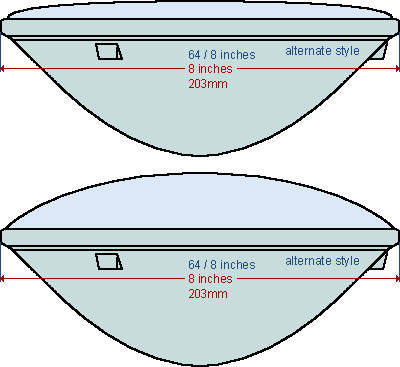

PAR64 Shape

PAR64
Diameter Designation64/8"
Glass Diameter 8" (8.0")
Shape CodePAR
Shape ClassificationParabolic Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

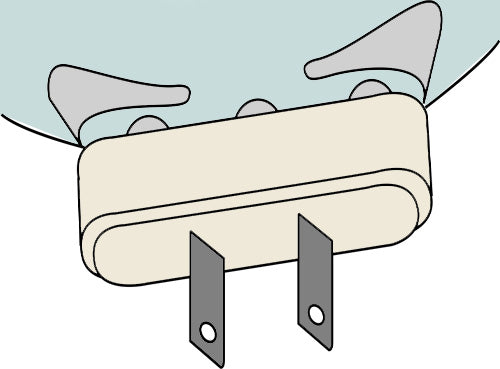

GX16d Base

GX16d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-1000-102S
Canimpex120-1000-102S

Equipment Used In

BrandModelType
Altman Lighting Outdoor PAR-64 Stage / Studio
Altman Lighting Enclosed Aluminum PAR-64-EA Stage / Studio
Altman Lighting Borderlight PAR-64 Stage / Studio
Altman Lighting Enclosed Aluminum PAR-56-EA Stage / Studio
L&E PAR-64 Stage / Studio
