FFT ANSI Code

FFT ANSI is a T4 lamp with a R7s-12 base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FFT lamps.

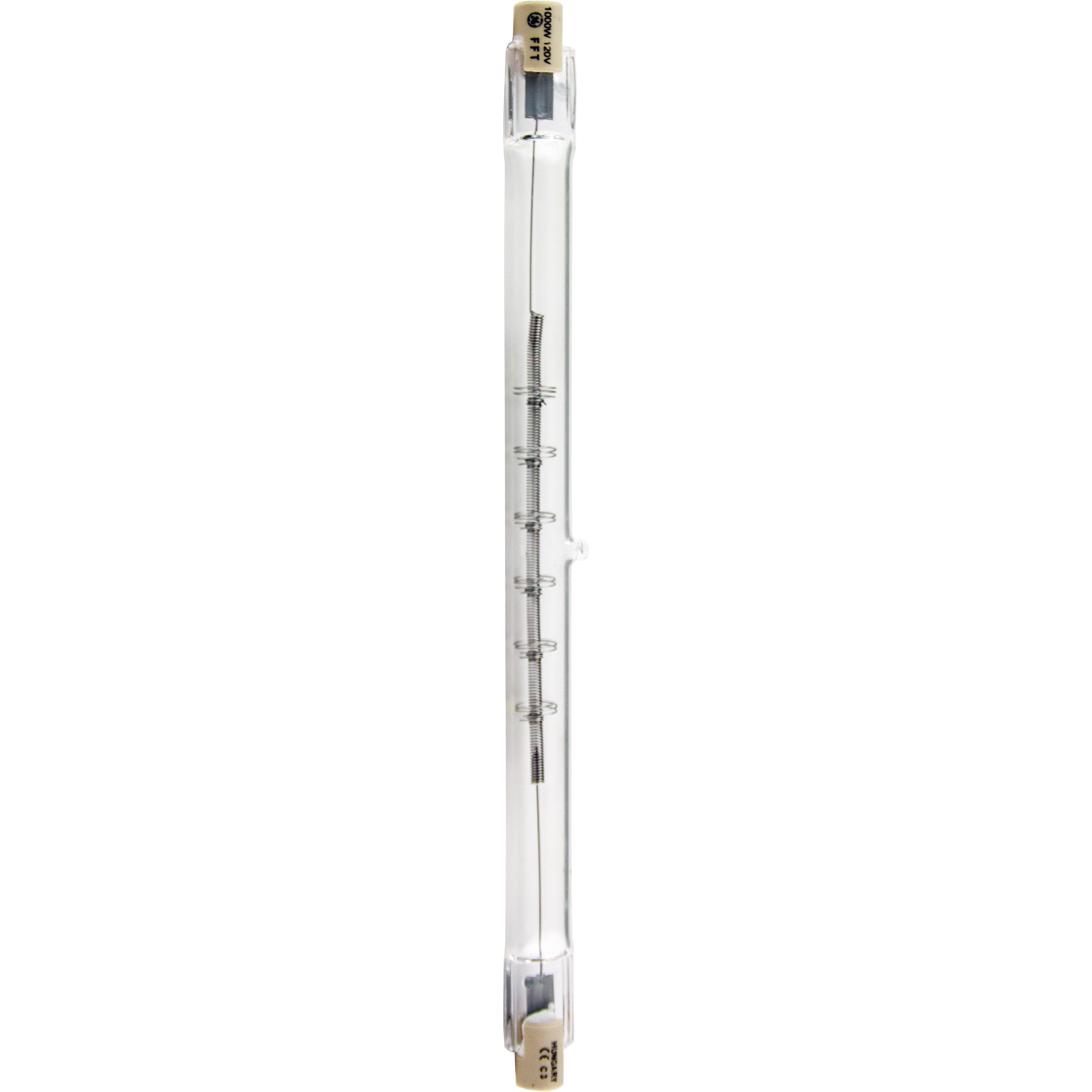

FFT Photograph

FFT

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2100
Color Temperature3200
Lumens26400

Physical Characteristics

BaseR7s-12
Bulb ShapeT4
FilamentC-8
FinishClear
Max Overall Length (MOL)6 9/16

Operating Characteristics

Burn PositionH ± 4°
Life Hours400

General Information
Lamp CodeFFT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s-12 Base

R7s-12

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Colortran176-182
General Electric33280FFT-Q1000T3/1CL
Grainger6VP30
Osram Sylvania54350FFT Q1000T3/1CL QTZ
Osram Sylvania54412Q1000T3/1CL
Osram Sylvania64584
Philips319210FFT
Philips390708FFT 1000W 120V 10PK
PhilipsPF801R
Ushio1000523FFT, JP120V-1000WC2
Microlites120-1000-75T
Canimpex120-1000-75T

Equipment Used In

BrandModelType
Altman Lighting Sky Cyc Stage / Studio
Altman Lighting Far CYC Stage / Studio
Eastman Kodak Printer 8S3
Eastman Kodak Printer 8S5
Strand Lighting Iris Cyclorama Light Stage / Studio
