FGF ANSI Code

FGF ANSI is a T3.25 lamp with a G5.3 base operating at 150 watts and 24 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FGF lamps.

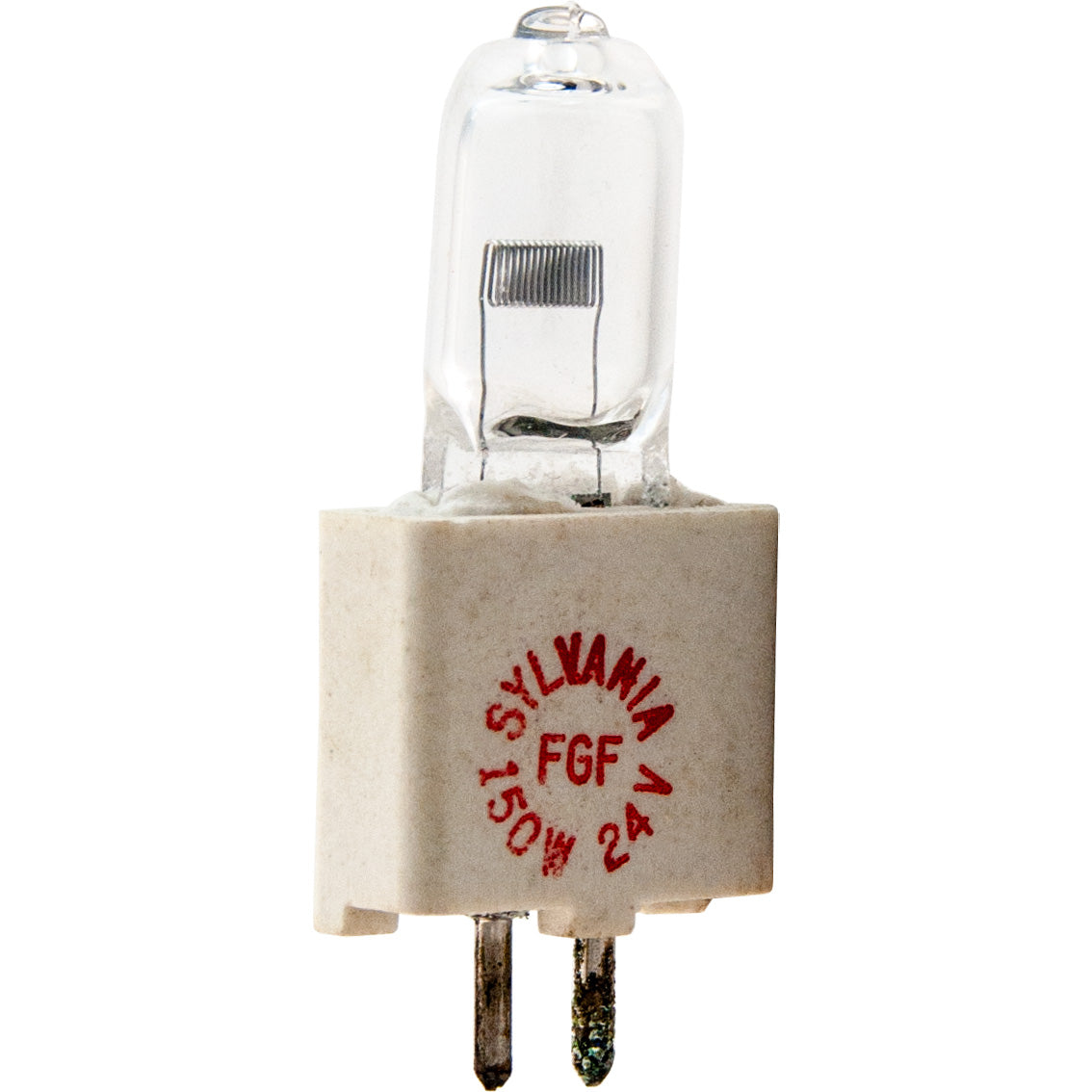

FGF Photograph

FGF

Electrical Specifications

Amps6.25
Volts24
Watts150

Photometrics

Candlepower350
Color Temperature3400
Light Center Length (LCL)1 1/16
Lumens4450

Physical Characteristics

BaseG5.3
Bulb ShapeT3.25
FilamentFC-6
FinishClear
Max Overall Length (MOL)2 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours50

General Information
Lamp CodeFGF
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T3.25 Shape

T3.25
Diameter Designation3.25/8"
Glass Diameter 13/32" (0.40625")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites24-150-23
Canimpex24-150-23

FGF may also be listed as:
031293033703 EIKO03370 EIKO03370 UPC03370 WIKO
3129303370 WIKOFGF ANSIFGF ASAFGF BULB-DIRECT
FGF EIKOFGF INTERLIGHTFGF KONDOFGF MICROLAMP
FGF SYLVANIAFGF WIKOFGF-24V ANSIFGF-24V ASA
FGF-24V-150WFGF-24V-150W ANSIFGF-24V-150W ASAFGF-24V-150W-G5.3-T3-FC6-CLEAR-4450L-3400K-50H-BD-2-1/8MOL-1-1/16LCL-Q-PROJECTOR
FGF-24V/24V/150W/G5.3 ANSIFGF-24VOLT ANSIFGF-24VOLT ASAFGF/24V/150W/G5.3 ANSI
H/24V/150W/G5.3/T3.25/FC6/50HH/24V/150W/G5.3/T3.25/FC6/50H/FGFSPQ150T3.25G5.3FC6-24VSPQ150T3.25G5.3FC624V-FGF
