FGS ANSI Code

FGS ANSI is a PAR36 lamp with a Ferrules base operating at 250 watts and 120 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 4 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FGS lamps.

Electrical Specifications

Amps2.08
Volts120
Watts250

Photometrics

Beam SpreadMedium Flood
Candlepower18,000cp
Color Temperature3400
Lumens18000

Physical Characteristics

BaseFerrules
Bulb ShapePAR36
FilamentCC-6
FinishClear
Max Overall Length (MOL)2 7/16

Operating Characteristics

Burn PositionHorizontal
Life Hours4

General Information
Lamp CodeFGS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

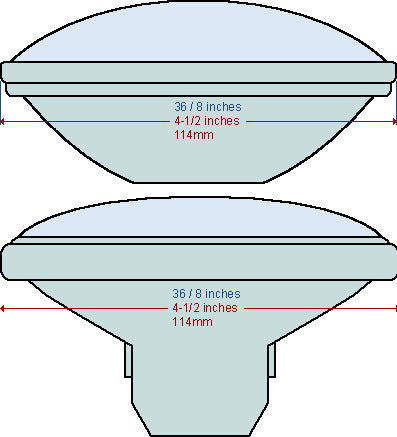

PAR36 Shape

PAR36
Diameter Designation36/8"
Glass Diameter 4 1/2" (4.5")
Shape CodePAR
Shape ClassificationParabolic Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

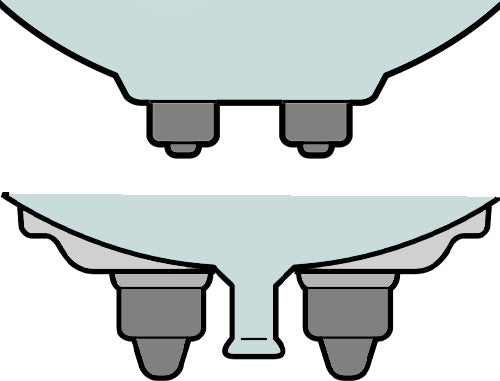

Ferrules Base

Ferrules

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-250-101R
Canimpex120-250-101R

Equipment Used In

BrandModelType
Bell and Howell DWA Lamp 41969
GAF (Ansco) Anscomatic Camera Light

FGS may also be listed as:
78-8032-4697 3MDWA/FGS ANSIFGS ANSIFGS ASA
FGS GENERAL-ELECTRICFGS INTERLIGHTFGS-120 ANSIFGS-120 ASA
FGS-120 VOLT ANSIFGS-120 VOLT ASAFGS-120V ANSIFGS-120V ASA
FGS-120V-250WFGS-120V-250W ANSIFGS-120V-250W ASAFGS-120V-250W-FERRULES-PAR-36-CC-6-CLEAR-18000CP-3400K-4H-ANY-2-7/16MOL-I-REFLECTOR-PHOTOFLOOD-MEDIUM-BEAM-30X20-DEG.
FGS-120V-250W-FERRULES-PAR36-CC6-CLEAR-18000CP-3400K-4H-ANY-2-7/16MOL-I-REFLECTOR-PHOTOFLOOD-MEDIUM-BEAM-30X20DEGFGS-120V/120V/250W/FER/PAR36 ANSIFGS-DWA ANSIFGS-DWA ASA
FGS-EZBFGS/120V/250W/FER ANSIFGS/120V/250W/FER/PAR36 ANSIFGS/120V/250W/FERRULES ANSI
FGS/DWA INTERLIGHTI/120V/250W/FERRULES/PAR36/CC6/4H/FGSI/120V/250W/FERRULES/PAR36/CL/4H/FGSSP250PAR36FERRULESCC6120V-FGS
SP250PAR36FERRULESCL120V-FGS
