FGT ANSI Code

FGT ANSI is a T4 lamp with a R7s-12 base operating at 1500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear / frosted finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FGT lamps.

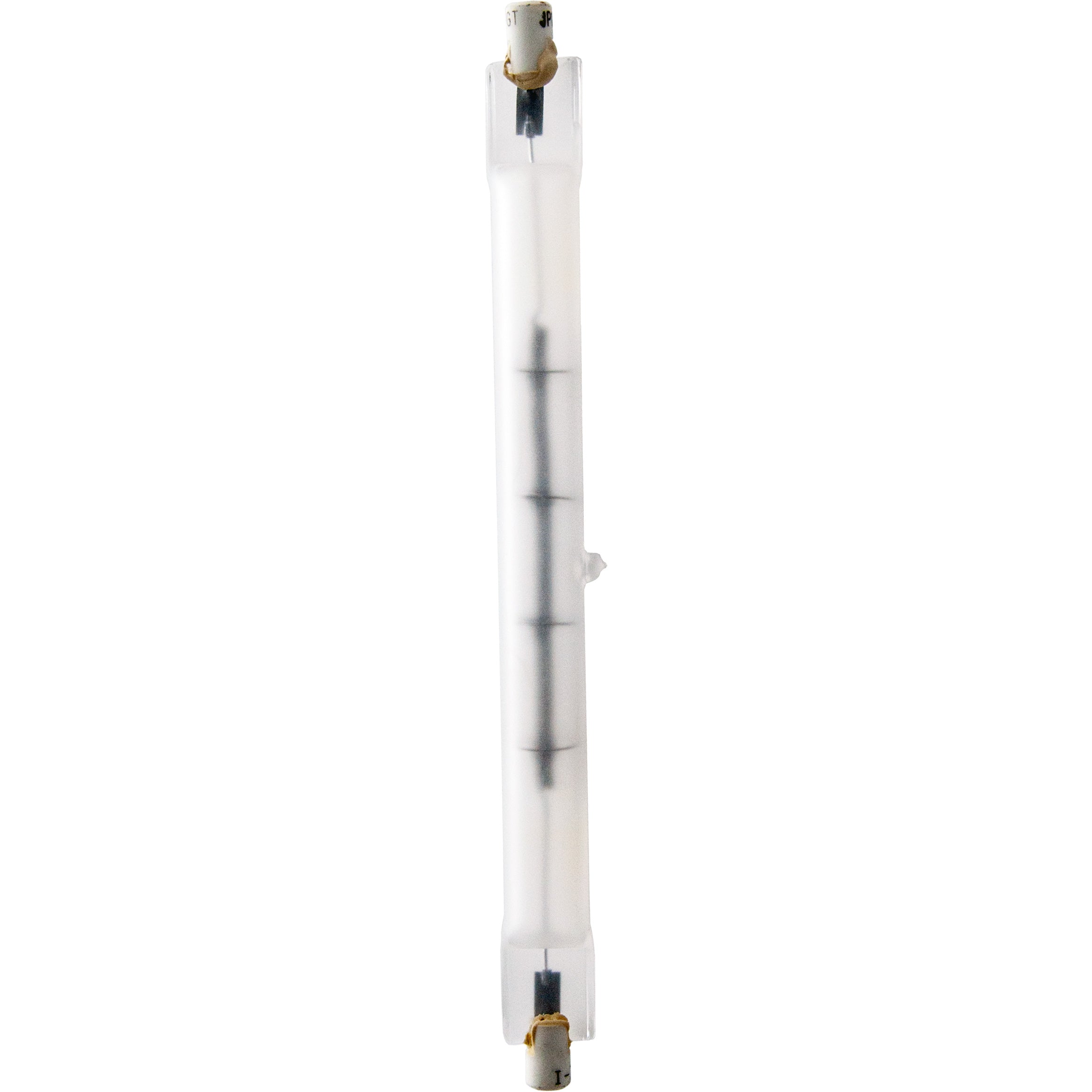

FGT Photograph

FGT

Electrical Specifications

Amps12.5
Volts120
Watts1500

Photometrics

Candlepower3200
Color Temperature3200
Lumens40200

Physical Characteristics

BaseR7s-12
Bulb ShapeT4
FilamentC-8
FinishClear / frosted
Max Overall Length (MOL)6 9/16

Operating Characteristics

Burn PositionHorizontal
Life Hours400

General Information
Lamp CodeFGT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s-12 Base

R7s-12

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Colortran176-142
General Electric41229FGT-Q1500T4/4
Industry CodeQ1500T4/4
Ushio1000529FGT, JP120V-1500WCF
Microlites120-1500-75TF
Canimpex120-1500-75TF

Equipment Used In

BrandModelType
Altman Lighting Sky Cyc Stage / Studio
Altman Lighting Far CYC Stage / Studio
Colortran Far CYCS Stage / Studio
Eastman Kodak Printer 8S5
Mole Richardson 2701 (Molefar Super Quartz Cyc-Strip) Stage / Studio
Strand Lighting Coda Floodlight Stage / Studio
