FHM ANSI Code

FHM ANSI is a T3 lamp with a R7s base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Frosted finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FHM lamps.

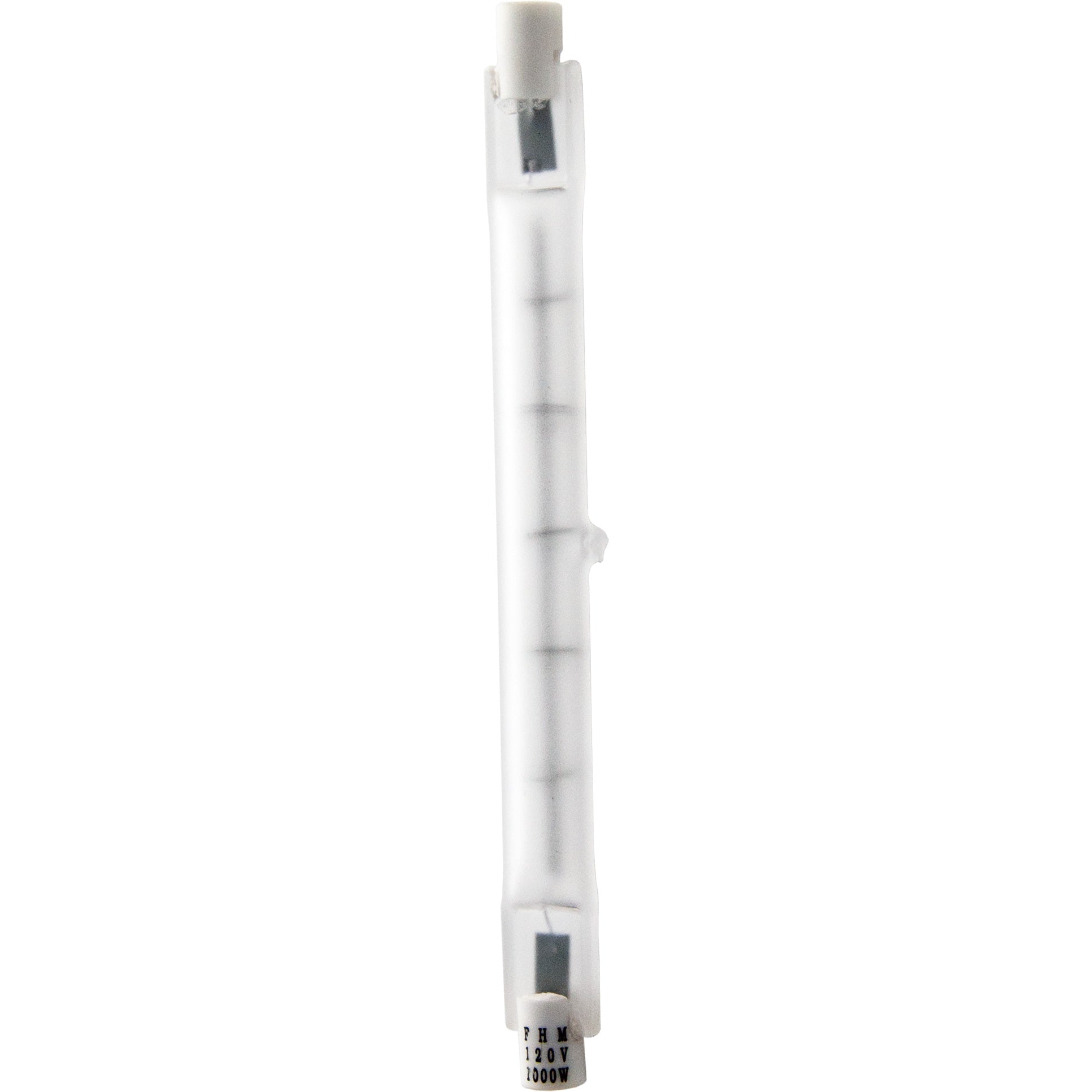

FHM Photograph

FHM

Electrical Specifications

Amps10
Volts120
Watts1000

Photometrics

Color Temperature3200
Light Center Length (LCL)117.6
Lumens27300

Physical Characteristics

BaseR7s
Bulb ShapeT3
FilamentC-8
FinishFrosted
Max Overall Length (MOL)4 11/16

Operating Characteristics

Burn PositionH ± 4°
Life Hours400

General Information
Lamp CodeFHM
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsP2/29

T3 Shape

T3
Diameter Designation3/8"
Glass Diameter 3/8" (0.375")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Acme-LiteFHM
Atlas/ThornP2/29
Bulbrite762325FHM
Colortran176-022
ColortranB5-32F
General Electric23792FHM-Q1000T3/4
Industry CodeQ1000T3/4
LowelFHM
Osram Sylvania54532FHM
Osram Sylvania64578
Philips261305FHM 1000T3Q
Philips7786R/16
Smith-Victor401989FHM (frosted)
Sunlite70225FHM
Ushio1000533FHM, JP120V-1000WCF1
Green Energy Lighting (GELCO)63265-WBFHM
Microlites120-1000-75F
Canimpex120-1000-75F

Equipment Used In

BrandModelType
ARRI Mini Flood Stage / Studio
ARRI ARRISOFT 2000 Stage / Studio
ARRI Cyc Mini Stage / Studio
ARRI ARRISOFT 1000 Stage / Studio
Acme-Lite 990
Acme-Lite 710
Acme-Lite 710LL
Altman Lighting Soft Lite Stage / Studio
Altman Lighting Junior Soft Lite Stage / Studio
Altman Lighting Q-Lite Stage / Studio
Lowel TOTA
Lowel Softlight 2 Stage / Studio
Smith-Victor 750-SG
