FHS ANSI Code

FHS ANSI is a T3.5 lamp with a GX5.3 base operating at 300 watts and 82 volts. It has a color temperature of 3300 Kelvin. It has a Open front finish. The average rated life is 70 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FHS lamps.

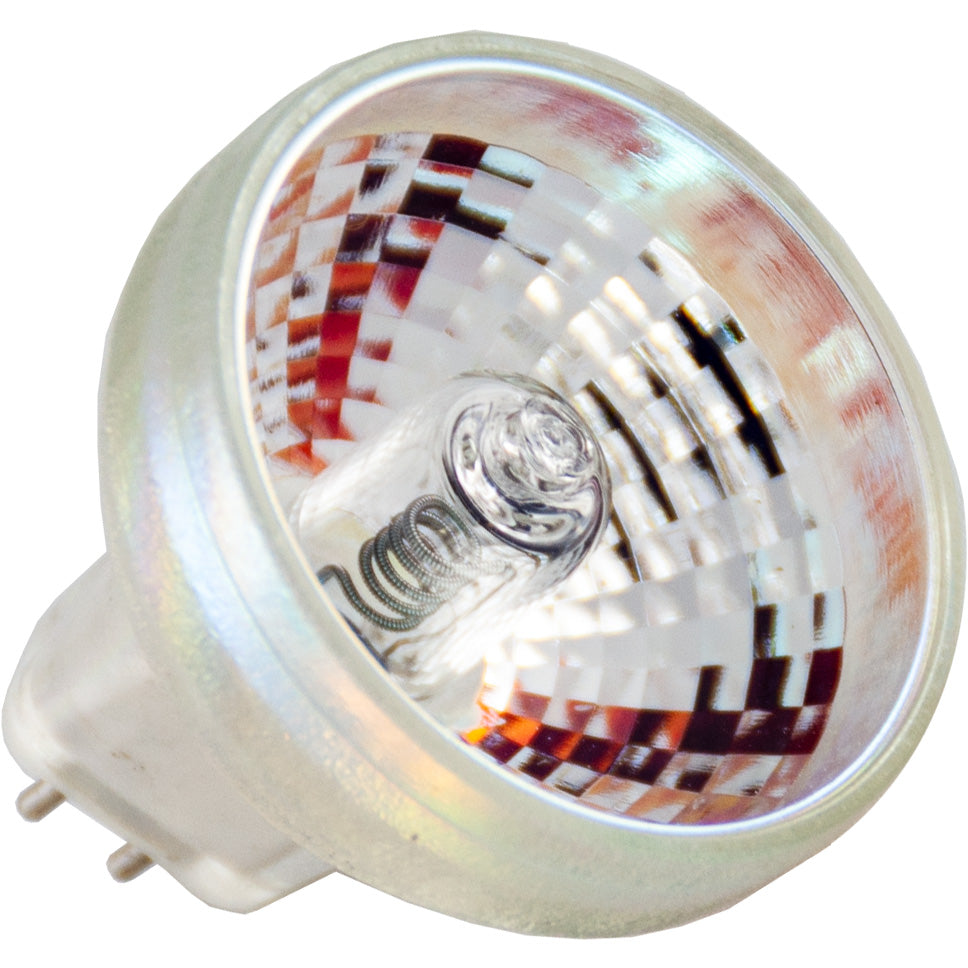

FHS Photograph

FHS

Electrical Specifications

Amps3.66
Volts82
Watts300

Photometrics

Color Temperature3300
Lumens1000 lux

Physical Characteristics

BaseGX5.3
Bulb ShapeT3.5
FilamentCC-8
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours70

General Information
Lamp CodeFHS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T3.5 Shape

T3.5
Diameter Designation3.5/8"
Glass Diameter 7/16" (0.4375")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite761180FHS
Eiko03420FHS
General Electric47614FHS
Grainger6VN06
Imported Lamp Code144215
Osram Sylvania5497993520 FHS
Philips253054FHS 300W 82V 24PK MR13
Sunlite70230FHS
Ushio1000535FHS, JCR82V-300W
Kahoku Lighting Solutions (KLS)62079-KLSFHS Japan
Green Energy Lighting (GELCO)62079-GELFHS
Microlites82-300-23SR
Canimpex82-300-23SR

Equipment Used In

BrandModelType
Dukane 28A-123 Pro Series
Dukane Micromatic II 28A85C
Dukane Pro Series 28A123
Dukane Cassette Micromatic Super 2 Projector
Dukane 28A-127 Pro Series
Dukane Response Micromatic 28A85A Projector
Dukane Pro Series 28A107RA
Dukane 28A-150 Pro Series
Dukane Automatic 28A81C Projector
Dukane Micromatic II 28A81B
Dukane Micromatic II 81C Projector
Dukane Micromatic II 28A84A Projector
Dukane Pro Series 28A120
Dukane 28A-120 Pro Series
Dukane Micromatic II 28A81C
Dukane Micromatic II 28A85B
Dukane Micromatic II 28A82A Projector
Dukane Micromatic II 28A85A
Dukane Pro Series 28A107
Dukane Micromatic II 28A81
Dukane Pro Series 28A100RA
Dukane Pro Series 28A100
Dukane 28A100 Pro Series Projector
Dukane Pro Series 28A127
Dukane Micromatic II 28A81A
Dukane 28A-157 Pro Series
Dukane Micromatic II 28A85
Eastman Kodak Ektagraphic III E
Eastman Kodak Carousel 5400
Eastman Kodak Carousel 4200
Eastman Kodak Ektagraphic III ATS
Eastman Kodak Ektagraphic III B
Eastman Kodak Carousel 4400
Eastman Kodak Ektagraphic III AMT
Eastman Kodak EktaPro Series
Eastman Kodak Carousel 5600
Eastman Kodak Carousel 4500
Eastman Kodak Carousel 5200
Eastman Kodak Carousel 4000
Eastman Kodak Ektagraphic III
Eastman Kodak Ektagraphic III A
Eastman Kodak Carousel 4600
GAVI (General Audio Visual Inc.) Lampmaster Duo
GAVI (General Audio Visual Inc.) Lampmaster III

FHS may also be listed as:
031293034205 EIKO03420 EIKO03420 UPC03420 WIKO
04613554979 SYLVANIA048777134931 UPC1000-535 USHIO1000535 BLV
11367 STANDARDPRO131251 NARVA131251 ORBITEC131251-H63193-GY5.3-42X44-82V-FHS-300W ORBITEC
131251/82V/300W ORBITEC131251/82V/300W/GX5.3 ORBITEC131251/82V/300W/GY5.3 ORBITEC131259 ORBITEC
131259-H63193GE ORBITEC131259/82V/300W ORBITEC131259/82V/300W/GX5.3 ORBITEC131259/82V/300W/GY5.3 ORBITEC
1363413634 PHILIPS13634-300W-GY5.3-82V-1CT/2413634-300W-GY5.3-82V-1CT/24 PHILIPS
13634-FHS BULB-DIRECT144215 BLV144215-FHS BULB-DIRECT14451
244-1031 ALLIED25305-4 PHILIPS253054/FHS PHILIPS28704 NANTONG-DONAR
3129303420 WIKO350196 OSRAM4050300350196 OSRAM41069630 PHILIPS
41069630-EOC PHILIPS4316899150643168991506UPC STANDARDPRO456-178 DUKANE
47614 GENERAL-ELECTRIC47614-SKU GENERAL-ELECTRIC5132-17 GUERRA54979 OSRAM
54979 SYLVANIA54979/FHS SYLVANIA63193761180 BULBRITE
82V/300W/GU5.382V/300W/GY5.3842030 PRODUCTS-FOR-MEDICINE842030/82V/300W PRODUCTS-FOR-MEDICINE
9240-108-28800 PHILIPS93520 OSRAM93520 SYLVANIA93520 WOTAN
93520-FHS-82V-300W-GY5.3-5497993520-FHS-82V-300W-GY5.3-54979 OSRAM93520/300W82V/GX5.3FHS OSRAM93520/300W82V/GY5.3FHS OSRAM
93520/82V300W/GX5.3 OSRAM93520/82V300W/GY5.3 OSRAM99-X-417 EFFNER99-X-417 FAROMED
BW-FHSCL70012 CARLEY-LAMPSCL70074 CARLEY-LAMPSEQ-FHS ELECTROQUIP
FHS ANSIFHS ASAFHS BULB-DIRECTFHS BULBRITE
FHS EIKOFHS GENERAL-ELECTRICFHS GUERRAFHS HALCO
FHS HIKARIFHS INTERLIGHTFHS KONDOFHS LAMPTECH
FHS MICROLAMPFHS NANTONG-DONARFHS ORBITECFHS OSRAM
FHS PHILIPSFHS STANDARDPROFHS SYLVANIAFHS USHIO
FHS WIKOFHS-300W-82V-24PK-MR13 PHILIPSFHS-300W-82V-GY5.3 GENERAL-ELECTRICFHS-300W-82V-GY5.3 USHIO
FHS-82 ANSIFHS-82 ASAFHS-82V ANSIFHS-82V ASA
FHS-82V GENERAL-ELECTRICFHS-82V-300WFHS-82V-300W ANSIFHS-82V-300W ASA
FHS-82V-300W-GY5.3 USHIOFHS-82V-300W-GY5.3-MR-13-CC-8-OPEN-FRONT-3300K-70H-BDTH-1-3/4MOL-Q-SLIDE-PROJECTOR-DICHROIC-REFLECTOR-WORKING-DIST.-6FHS-82V-300W-GY5.3-MR13-CC8-OPEN-FRONT-3300K-70H-BDTH-1-3/4MOL-Q-SLIDE-PROJECTOR-DICHROIC-REFLECTOR-WORKING-DIST-6FHS-82V/04613554979 SYLVANIA
FHS-82V/300W-GU5.3FHS-82V/54979 SYLVANIAFHS-82V/82V/300W/GY5.3/MR13D ANSIFHS-82VOLT ANSI
FHS-82VOLT ASAFHS-JCR82V-300W-GY5.3 USHIOFHS-JCR82V300W-STIPPLED-44.5MMMOL-CC-8-152.4MMWD-1000L-3300K-70H-BD-HOR-1000535 BLVFHS-JCR82V300W-STIPPLED-44.5MMMOL-CC-8-152.4MMWD-1000L-3300K-70H-BD-HOR-1000535 USHIO
FHS/82VFHS/82V/300W OSRAMFHS/82V/300W/GX5.3 ANSIFHS/82V/300W/GY5.3 ANSI
FHS/82V/300W/GY5.3/70HFHS/82V/300W/GY5.3/MR13D ANSIFHS/GX5.3 USHIOFHS/GY5.3 USHIO
FHS/MR-13-82V-300W-RM2P LAMPTECHFHS/MR13/GY5.3/300W/82V/1/10/70H/CC-8/3300K/BDTH-BURNFHS82V/300W-GY5.3 HIKARIFHS82V/300WGY5.3
GY5.3-42X44-82V-300W-FHS/H63193/131251 ORBITECGY5.3-42X44-82V-FHS-300W ORBITECGY5.3-42X44MM-82V-300W-FHS/H63193/131251 ORBITECGY5.3-82V-300W-PROJECTION ELECTROQUIP
GY5.3-MR13-82V-300W-FHS-JCR82V-300W-STIPPLED-44.5MMMOL-CC-8-152.4MMWD-1000L-3300K-70H-BD-HOR-1000535 BLVGY5.3-MR13-82V-300W-FHS-JCR82V-300W-STIPPLED-44.5MMMOL-CC-8-152.4MMWD-1000L-3300K-70H-BD-HOR-1000535 USHIOH-63193 ORBITECH/82V/300W/GX5.3/MR13/FL/70H
H/82V/300W/GX5.3/MR13D/150MMWD/70HH/82V/300W/GX5.3/MR13D/152MMWD/70HH/82V/300W/GX5.3/MR13D/3300KH/82V/300W/GX5.3/MR13D/70H
H/82V/300W/GY5.3/MR13/FL/70HH/82V/300W/GY5.3/MR13D/150MMWD/70HH/82V/300W/GY5.3/MR13D/152MMWD/70HH/82V/300W/GY5.3/MR13D/3300K
H/82V/300W/GY5.3/MR13D/70HH/82V/300W/GY5.3/MR13D/CC8/70HH/82V/300W/GY5.3/MR13D/CC8/70H/FHSH63193-GE ORBITEC
H63193-GE/131259 ORBITECH63193-GY5.3-42X44-82V-FHS-300W ORBITECH63193/82V/300W ORBITECH63193/82V/300W/GX5.3 ORBITEC
H63193/82V/300W/GY5.3 ORBITECH63193GE/82V/300W ORBITECH63193GE/82V/300W/GX5.3 ORBITECH63193GE/82V/300W/GY5.3 ORBITEC
JCR82V-300W/70H USHIOJCR82V-300W/82V/300W/GY5.3/FHS USHIOJCR82V-300W/AX/152.4MMWD/70H USHIOJCR82V-300W/FHS USHIO
JCR82V-300W/GX5.3/70H USHIOJCR82V-300W/GY5.3/70H USHIOJCR82V300W-GY5.3/FHS USHIOMR-13-FACETED-DICHROIC-REFLECTOR-300-82-FHS-SLIDE-PROJECTION-3300-CC-8-44.4-42.4-150-70-GY5.3-10-MV-47614-2 GENERAL-ELECTRIC
MR-13-FACETED-DICHROIC-REFLECTOR-300W-82V-FHS-SLIDE-PROJECTION-3300-CC-8-44.4-42.4-150-70-GY5.3-10-MV-47614-2 GENERAL-ELECTRICMR-13/300W/82V/2-PIN/GX5.3/FHS STANDARDPROMR-13/300W/82V/2-PIN/GY5.3/FHS STANDARDPROPROJECTION/82V/300W/GY5.3/70H ELECTROQUIP
Q/300W/MR13/GX5.3/82V/131251 NARVAQ/300W/MR13/GY5.3/82V/131251 NARVAS-06511 HIKARISPQ300MR13DGY5.3AX-82V
SPQ300MR13DGY5.3AX82V-FHSSPQ300MR13DGY5.3CC8-82VSPQ300MR13DGY5.3CC882V-FHS
