FHZ ANSI Code
FHZ ANSI is a MR13 lamp with a Special base operating at 6 watts and 6 volts. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FHZ lamps.

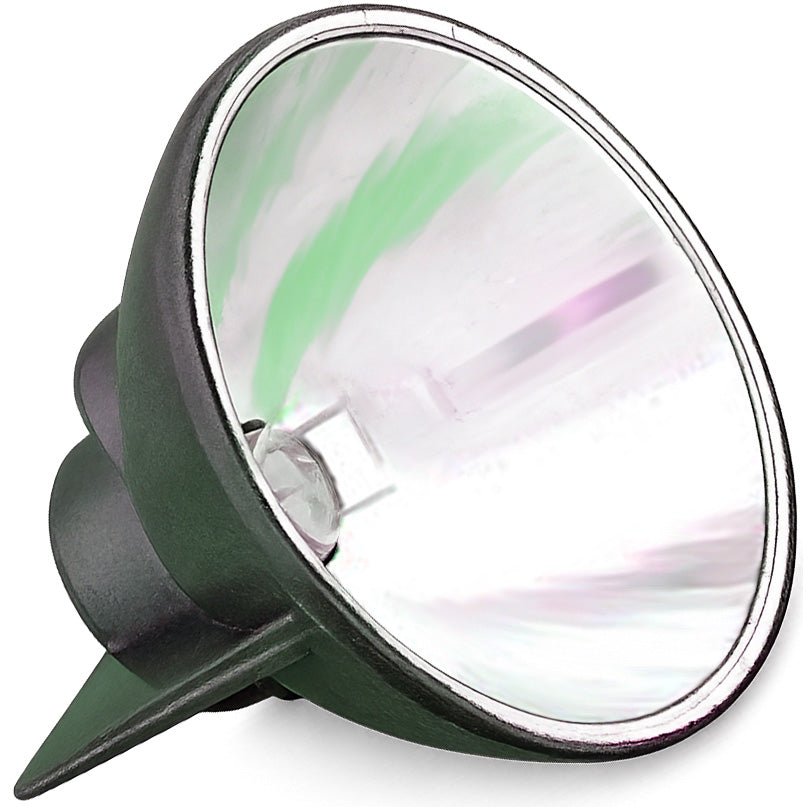

FHZ Photograph |
 |
Electrical Specifications | |
| Amps | 1 |
|---|---|
| Volts | 6 |
| Watts | 6 |
Photometrics |
Physical Characteristics | |
| Base | Special |
|---|---|
| Bulb Shape | MR13 |
| Filament | C-6 |
Operating Characteristics | |
| Life Hours | 200 |
|---|---|
General Information | |
| Lamp Code | FHZ |
|---|---|
| Code Type | ANSI |
MR13 Shape | |
 | |
| Diameter Designation | 13/8" |
|---|---|
| Glass Diameter | 1 5/8" (1.625") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | FHZ | ||
