FLK ANSI Code

FLK ANSI is a T6 lamp with a G9.5 base operating at 575 watts and 115 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FLK lamps.

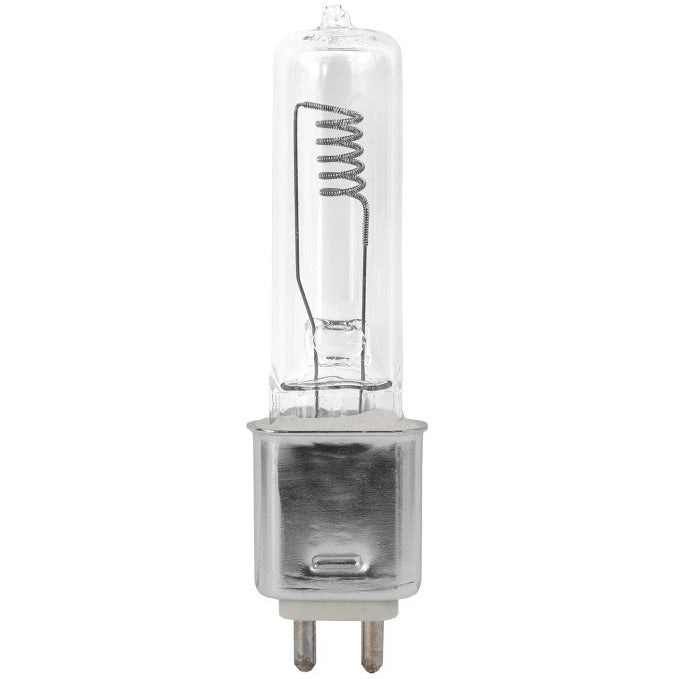

FLK Photograph

FLK

Electrical Specifications

Amps5
Volts115
Watts575

Photometrics

Candlepower1300
Color Temperature3200
Light Center Length (LCL)60.5mm
Lumens16500

Physical Characteristics

BaseG9.5
Bulb ShapeT6
FilamentCC-8
FinishClear
Max Overall Length (MOL)101mm

Operating Characteristics

Burn PositionAny
Life Hours300

General Information
Lamp CodeFLK
Code TypeANSI
Specification ReferenceANSI-SR24F2002
VariantsFLK/LL

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Atlas/ThornHX-600
Bulbrite762335FLK
Eiko03476FLK
General Electric11450FLK-Q575T6/4CL
General Electric88452FLK/LL-Q575T6
General Electric88548FLK-Q575T6/4CL
Osram Sylvania54589FLK 64712
Philips248617FLK 115V 575W
Sunlite70234FLK
Ushio1002196HX-601, JCV115V-575WBM
Ushio1000543FLK/HX-600, JCV115V-575WCM
Green Energy Lighting (GELCO)63269-WBFLK
Grainger1E942
Grainger2F226
Microlites115-575-29
Canimpex115-575-29

Equipment Used In

BrandModelType
Altman Lighting Star-Par SP-A Stage / Studio
Altman Lighting Shakespeare S6-50
Altman Lighting Shakespeare Zoom S6-3055Z
Altman Lighting Star-Par SP-M Stage / Studio
Altman Lighting Star-Par SP-N Stage / Studio
Altman Lighting Star-Par SP-V Stage / Studio
Altman Lighting 360Q Old Style Reflector Stage / Studio
Altman Lighting Shakespeare S6-10
Altman Lighting Star-Par SP-W Stage / Studio
Altman Lighting Shakespeare S6-20
Altman Lighting Shakespeare S6-5
Altman Lighting Shakespeare S6-30
Altman Lighting Shakespeare Zoom S6-1535Z
Altman Lighting Shakespeare S6-12
Altman Lighting Shakespeare S6-40
Colortran 5/50 Stage / Studio
Elation OPTI-PAR W ETL HX601
Elation OPTI ZOOM HX601
Elation STAGE COLOR HX601
Elation OPTI-PAR P ETL HX601
Elation OPTI-PAR ETL HX601
L&E 6 Ellipsoidals Fixed Focus Zoom Stage / Studio
L&E 4-1/2 Fresnel Spotlight Stage / Studio
Strand Lighting Lekolite 10 Stage / Studio
Strand Lighting Lekolite 6 Stage / Studio
Strand Lighting Lekozoom 4 25-50 Stage / Studio
Strand Lighting Lekozoom 4 18-30 Stage / Studio
Strand Lighting Lekolite 8 Stage / Studio
Techni-Lux PA-FLEXIPAR/B 575W 120V LONG LIFE
Techni-Lux PA-FLEXIPAR/W 575W 120V LONG LIFE
Techni-Lux FLEXIPAR575 BLACK 575W 120V LONG LIFE
Techni-Lux FLEXIPAR575 WHITE 575W 120V LONG LIFE
Times Square Lighting W575 FLOOD 575W 115V FLK
