FLT ANSI Code

FLT ANSI is a MR11D lamp with a GZ9.5 base operating at 25 watts and 13.8 volts. It has a color temperature of 3050 Kelvin. It has a Dichroic finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FLT lamps.

FLT Photograph

FLT

Electrical Specifications

Amps1.81
Volts13.8
Watts25

Photometrics

Color Temperature3050
Lumens1300 lux

Physical Characteristics

BaseGZ9.5
Bulb ShapeMR11D
FilamentCC-6
FinishDichroic
Max Overall Length (MOL)1 3/8

Operating Characteristics

Burn PositionBDTH
Life Hours500

General Information
Lamp CodeFLT
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-01-270-5998

MR11D Shape

MR11D
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

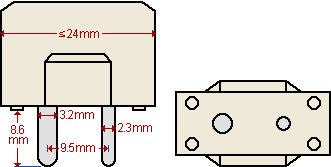

GZ9.5 Base

GZ9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Green Energy Lighting (GELCO)63103-GELFLT
Grainger1C704
Microlites13.8-025-20R
Canimpex13.8-025-20R
Orbitec131460H 68025

Equipment Used In

BrandModelType
Eye Communication Eye Com 5000 Microfiche Reader
Eye Communication Eye Com 2100 Microfiche Reader
Eye Communication Eye Com 3000 Microfiche Reader
Eye Communication Eye Com 9000 Microfiche Reader
Eye Communication Eye Com 1200 Microfiche Reader
Eye Communication Minox K-6
Eye Communication Eye Com 2000 Microfiche Reader
Eye Communication Eye Com 1100 Microfiche Reader
Eye Communication Eye Com 1000 Microfiche Reader
Micro Design 495 Microfilm
Micro Design 425 Microfilm
Micro Design 475 Microfilm
Micron XL-10
Micron XL-20

Sources

  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "Lamp Specification & Application Guide 2004." Catalog. Philips Lighting Company, .
