FLW ANSI Code
FLW ANSI is a T4 lamp with a GY6.35 base operating at 300 watts and 24 volts. It has a color temperature of 3500 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FLW lamps.

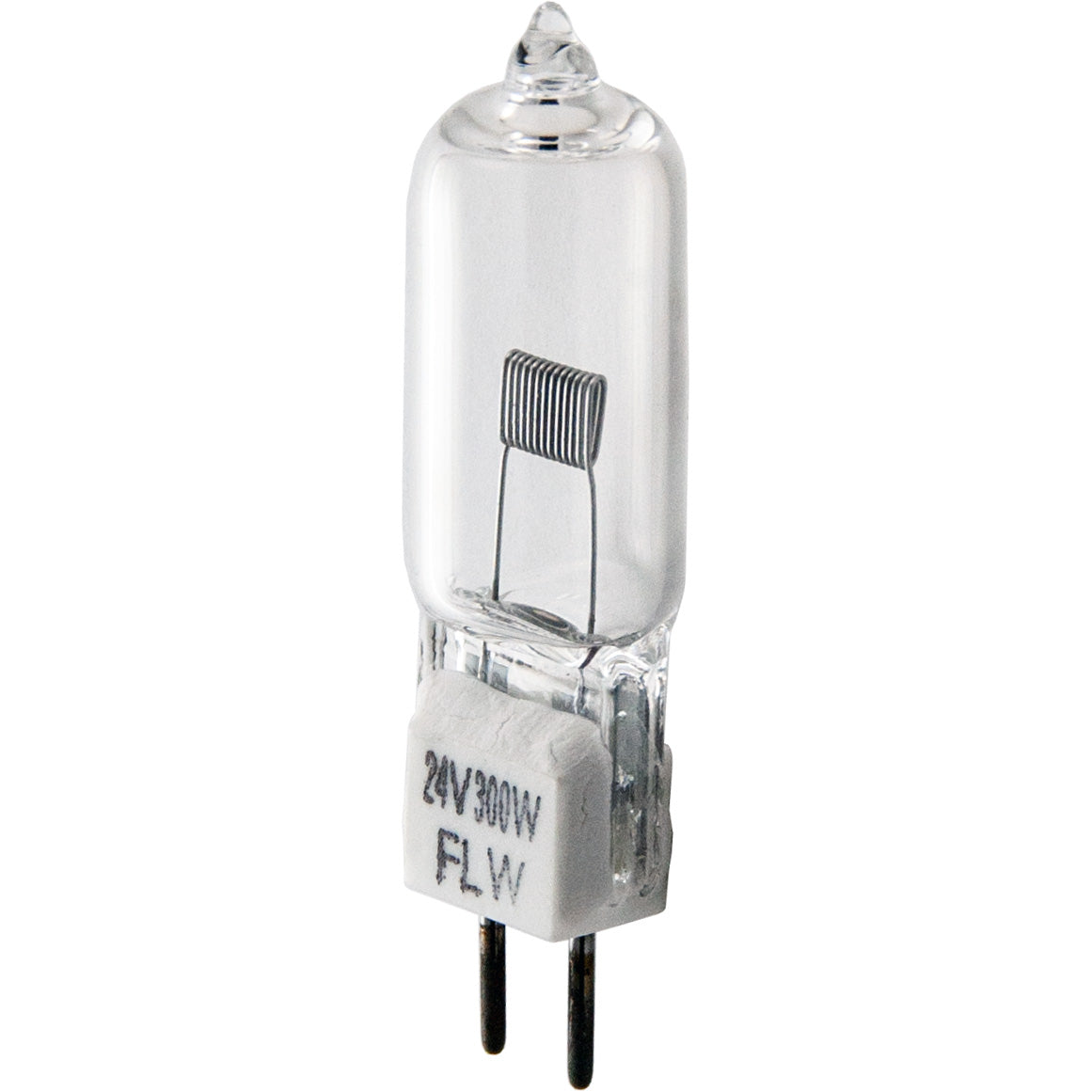

FLW Photograph |
 |
Electrical Specifications | |
| Amps | 12.5 |
|---|---|
| Volts | 24 |
| Watts | 300 |
Photometrics | |
| Candlepower | 810 |
|---|---|
| Color Temperature | 3500 |
| Light Center Length (LCL) | 1 17/81 |
| Lumens | 10200 |
Physical Characteristics | |
| Base | GY6.35 |
|---|---|
| Bulb Shape | T4 |
| Filament | FC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 3/20 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | FLW |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
FC-6 Filament | |
 | |
| Coil Type | FC - Flat Coil |
|---|---|
GY6.35 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | 03480 | FLW | |
| General Electric | 19886 | FLW | |
| Grainger | 1K437 | ||
| Philips | 204925 | FLW 300W 24V 24PK | |
| Ushio | 1000545 | FLW, JC24V-300WA-H | Available |
| Green Energy Lighting (GELCO) | 60565-GEL | FLW | |
| Microlites | 24-300-24 | ||
| Canimpex | 24-300-24 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Ektalite L3 | |
| Eastman Kodak | Ektalite L5 | |
| Eastman Kodak | Ektalite | |
| Elmo | HP-285S | |
| Elmo | 285-S | |
| Elmo | HP-285P | |
| Elmo | 285-P | |
FLW may also be listed as: | |||
| 031293034809 EIKO | 031293035301 EIKO | 03480 WIKO | 1000545 USHIO |
| 130196 NARVA | 130196 ORBITEC | 130196/24V/300W NARVA | 14530 PHILIPS |
| 19886 GENERAL-ELECTRIC | 19886-SKU GENERAL-ELECTRIC | 20492-5 | 9240-414-20500 PHILIPS |
| FLW ANSI | FLW ASA | FLW BULB-DIRECT | FLW EIKO |
| FLW INTERLIGHT | FLW ORBITEC | FLW USHIO | FLW WIKO |
| FLW-24 ANSI | FLW-24 ASA | FLW-24V ANSI | FLW-24V ASA |
| FLW-24V GENERAL-ELECTRIC | FLW-24V-300W ANSI | FLW-24V-300W ASA | FLW4-24-300 EIKO |
| FLW4-24-300W EIKO | FLW4-24V300 EIKO | FLW4-24V300W EIKO | H-164660 ORBITEC |
| JC-24V-300 EIKO | JC-24V-300 USHIO | JC-24V-300 WIKO | JC-24V-300-FLW USHIO |
| JC-24V-300-G-2 | JC-24V-300-L-2 SYLVANIA | JC-24V-300W EIKO | JC-24V-300W USHIO |
| JC-24V-300W WIKO | JC-24V-300W-FLW USHIO | JC-24V-300W-G-2 | JC-24V-300W-L-2 SYLVANIA |
| JC-24V/300W/L2 | JC-L-2 KONDO | JC/24-300/L2 JAPAN | JC/24V/300W/A USHIO |
| JC/24V/300W/GY6.35C/FC6 | JC/24V/300W/L2 JAPAN | JC24-300 EIKO | JC24-300 USHIO |
| JC24-300 WIKO | JC24-300FLW USHIO | JC24-300G2 | JC24-300L2 SYLVANIA |
| JC24-300W EIKO | JC24-300W USHIO | JC24-300W WIKO | JC24-300WFLW USHIO |
| JC24-300WG2 | JC24-300WL2 SYLVANIA | Q/300W/T4/GY6.35C/CL/24V | |
