FMR ANSI Code
FMR ANSI is a T5 lamp with a GY9.5 base operating at 600 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FMR lamps.

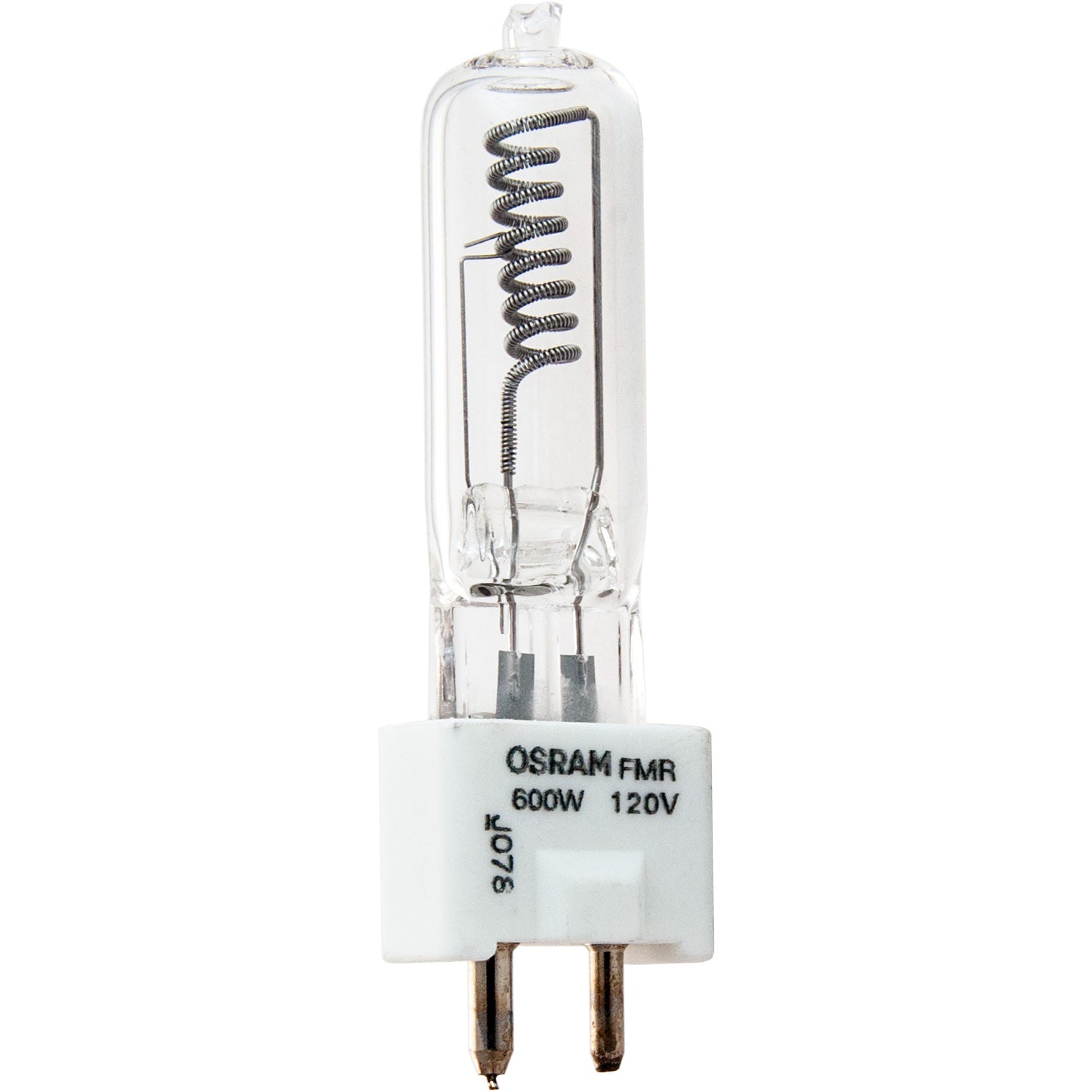

FMR Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 600 |
Photometrics | |
| Color Temperature | 3000 |
|---|---|
| Light Center Length (LCL) | 2 |
| Lumens | 12600 |
Physical Characteristics | |
| Base | GY9.5 |
|---|---|
| Bulb Shape | T5 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 7/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | FMR |
|---|---|
| Code Type | ANSI |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GY9.5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| General Electric | 30475 | FMR-Q600T5 | |
| Grainger | 1C751 | ||
| Osram Sylvania | 54412 | FMR | |
| Ushio | 1000547 | FMR, JCV120V-600WGY | Available |
