FNS ANSI Code
FNS ANSI is a T6 lamp with a GX6.35 base operating at 300 watts and 120 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FNS lamps.

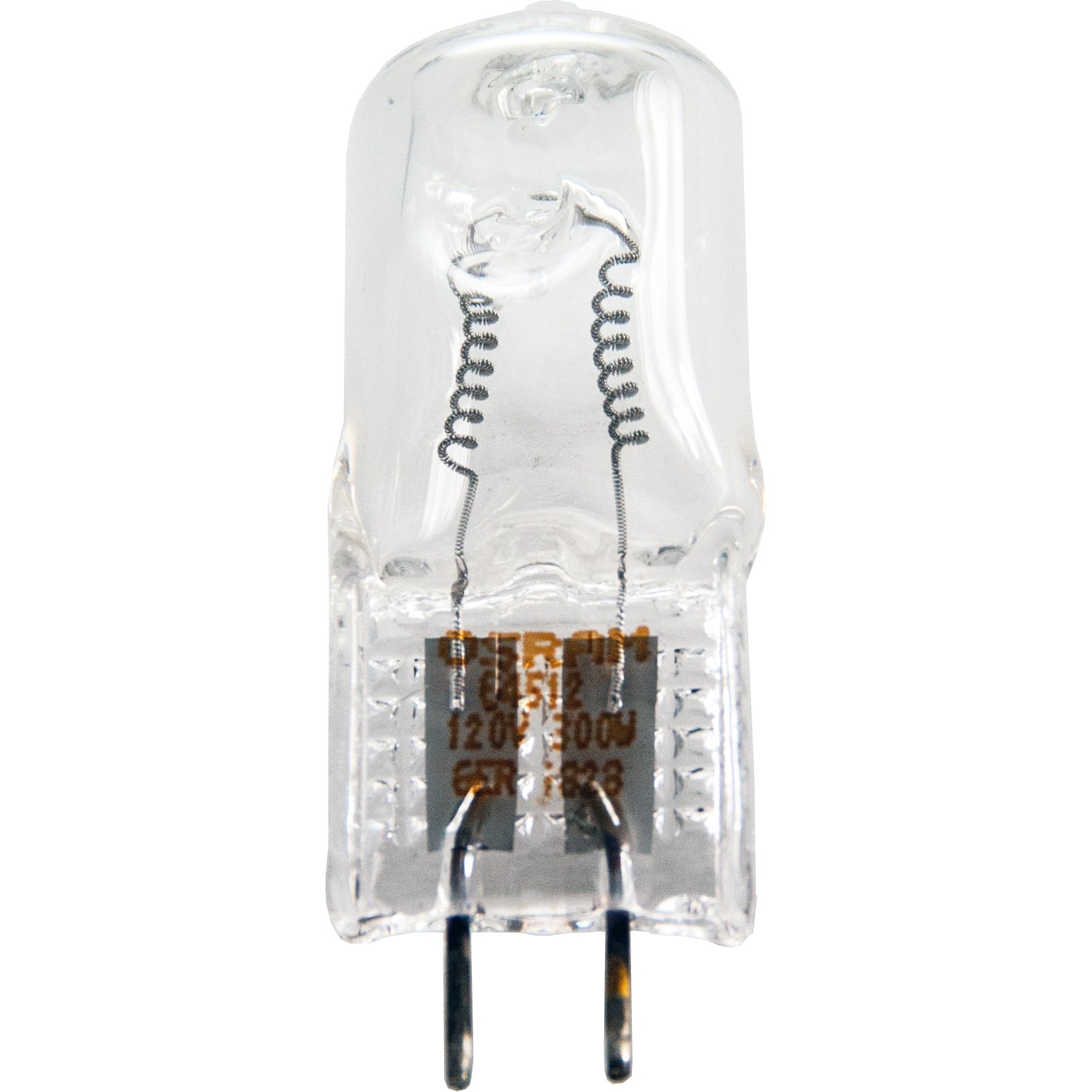

FNS Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 300 |
Photometrics | |
| Color Temperature | 3400 |
|---|---|
| Light Center Length (LCL) | 26 |
| Lumens | 8500 |
Physical Characteristics | |
| Base | GX6.35 |
|---|---|
| Bulb Shape | T6 |
| Filament | CC-2F |
| Finish | Clear |
| Max Overall Length (MOL) | 57 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | FNS |
|---|---|
| Code Type | ANSI |
T6 Shape | |
 | |
| Diameter Designation | 6/8" |
|---|---|
| Glass Diameter | 3/4" (0.75") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-2F Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX6.35 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Osram Sylvania | 58635 | 64512 FNS | |
| Ushio | 1000974 | FNS, JCV120V-300WC | Available |
| Osram Sylvania | 54764 | FNS 64512 | Available |
| Green Energy Lighting (GELCO) | 63107-GEL | FNS | |
Equipment Used In | ||
| Brand | Model | Type |
| Kaiser | Videolight 8P | |
| Osram Sylvania | Video 300 | |
| Osram Sylvania | Video 300S | |
