FSA ANSI Code
FSA ANSI is a MR16 lamp with a E17s base operating at 75 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Open front finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FSA lamps.

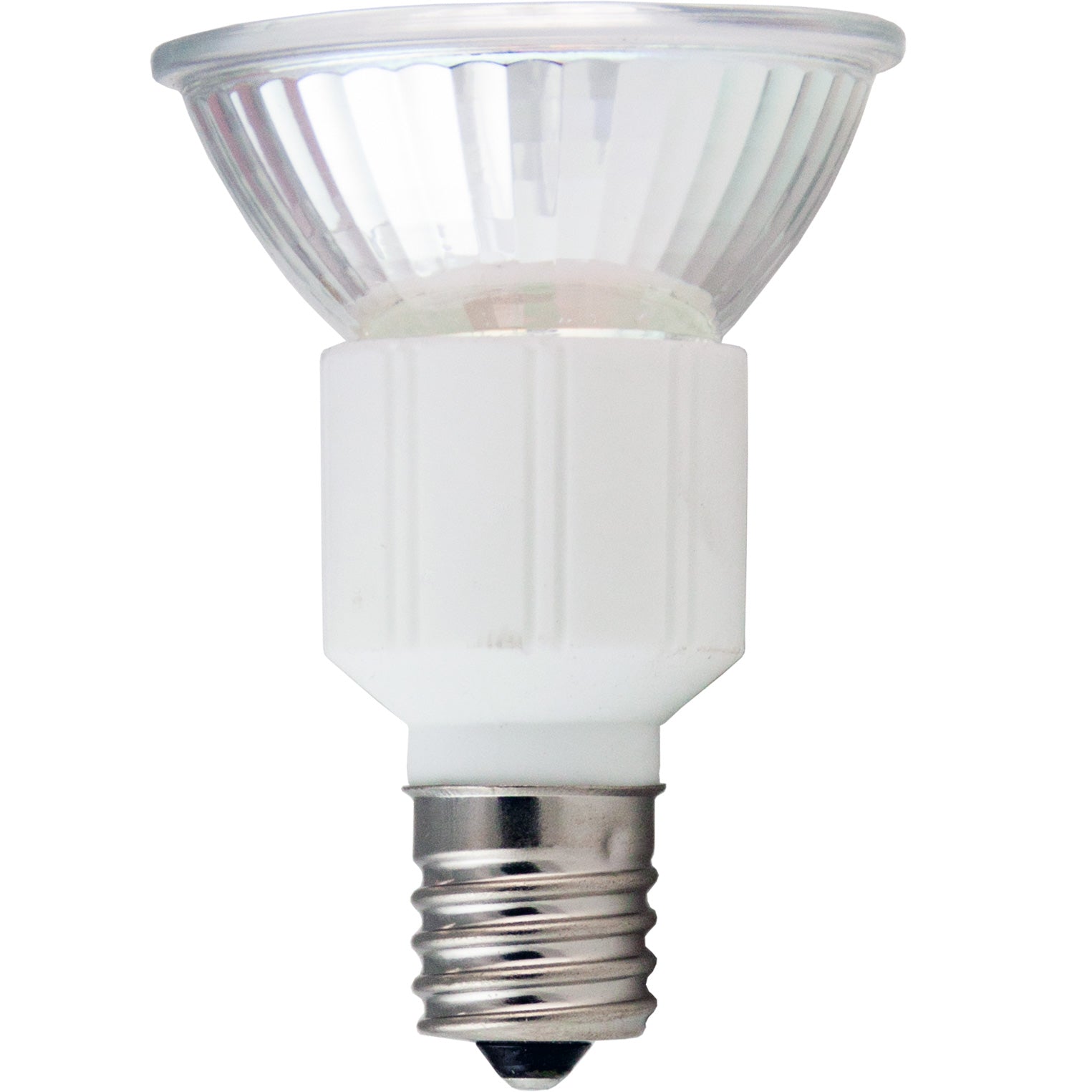

FSA Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 75 |
Photometrics | |
| Candlepower | 6,300cd |
|---|---|
| Color Temperature | 3000 |
Physical Characteristics | |
| Base | E17s |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-8 |
| Finish | Open front |
| Max Overall Length (MOL) | 75mm |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 3000 |
General Information | |
| Lamp Code | FSA |
|---|---|
| Code Type | ANSI |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

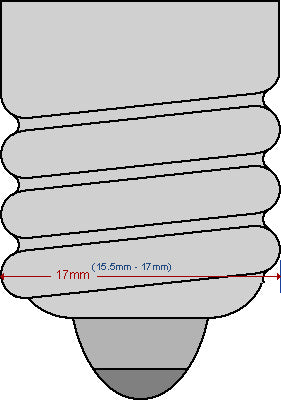

E17s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| EYE (Iwasaki) | JDR120V75W/2N | FSA | |
Equipment Used In | ||
| Brand | Model | Type |
| Simkar | 74-00615 | |
