FSH ANSI Code
FSH ANSI is a T3 lamp with a G5.3 base operating at 125 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FSH lamps.

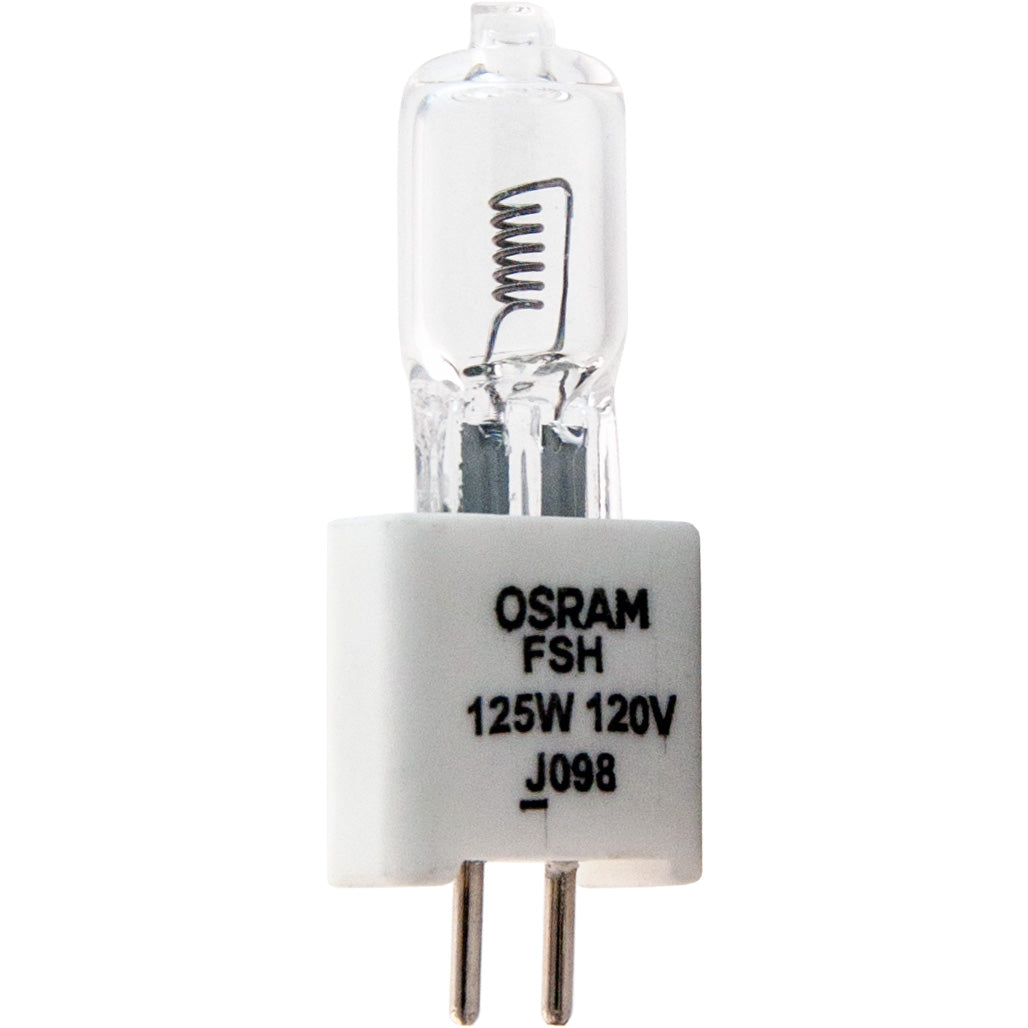

FSH Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 125 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 32 |
| Lumens | 2500 |
Physical Characteristics | |
| Base | G5.3 |
|---|---|
| Bulb Shape | T3 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 57 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 200 |
General Information | |
| Lamp Code | FSH |
|---|---|
| Code Type | ANSI |
T3 Shape | |
 | |
| Diameter Designation | 3/8" |
|---|---|
| Glass Diameter | 3/8" (0.375") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
G5.3 Base |
 |
