FSV ANSI Code

FSV ANSI is a MR11CD lamp with a BA15d base operating at 20 watts and 12 volts. It has a color temperature of 3000 Kelvin. It has a Dichro Open finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FSV lamps.

Electrical Specifications

Amps1.67
Volts12
Watts20

Photometrics

Beam SpreadMedium Flood
Candlepower600cd
Color Temperature3000

Physical Characteristics

BaseBA15d
Bulb ShapeMR11CD
FilamentC-6
FinishDichro Open
Max Overall Length (MOL)42mm

Operating Characteristics

Burn PositionAny
Life Hours3500

General Information
Lamp CodeFSV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

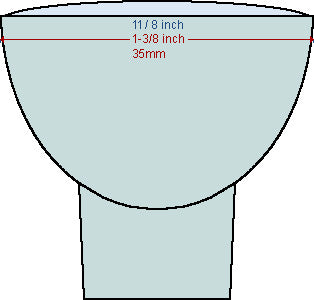

MR11CD Shape

MR11CD
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

C-6 Filament

C-6
Coil TypeC - Single Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsFSVFSV
Sunlite03198-SU20MR11/CG/DC/NFL/12V

FSV may also be listed as:
045923019524 SATCO048777140048 UPC1000612 BLV1000612 USHIO
107105 HALCO15484 STANDARDPRO20MR11/DC/FSV/C SATCO20MR11CG/DC/30DEG/B IWASAKI
20MR11CG/DC/30DEG/G IWASAKI20MR11CG/DC/30DEG/R IWASAKI20MR11CG/DC/34DEG IWASAKI20MR11CG/DC/FL/FSV/EYE STANDARDPRO
20MR11DCWFLBLUEFG12V20MR11DCWFLGREENFG12V20MR11DCWFLREDFG12V78806 IWASAKI
78811 IWASAKI78817 IWASAKI78823 IWASAKI807154171057 HALCO
844409003022 HIKARIBA15D-MR11-12V-20W-FSV/FG-JDR/M12V-20W/BA/FL30/FG-FACETED-46.5MMMOL-C-6-2900K-30DEG-FLOOD-600CP-2000H-1000612 BLVBA15D-MR11-12V-20W-FSV/FG-JDR/M12V-20W/BA/FL30/FG-FACETED-46.5MMMOL-C-6-2900K-30DEG-FLOOD-600CP-2000H-1000612 USHIOBW-FSV-FG
FSV-12V-CG-2000H/12V/20W/BA15D/MR11CD/2000H ANSIFSV-12V-CG/12V/20W/BA15D/MR11CD ANSIFSV-CG/12V/20W/BA15D/MR11CD ANSIFSV-FC
FSV-FG ANSIFSV-FG ASAFSV-FG INTERLIGHTFSV-FG IWASAKI
FSV-FG USHIOFSV-FG-12 ANSIFSV-FG-12 ASAFSV-FG-12V ANSI
FSV-FG-12V ASAFSV-FG-12V-20WFSV-FG-12V-20W-BA15D-30-DEG USHIOFSV-FG-12V-20W-BA15D-30DEGREE USHIO
FSV-FG-12VOLT ANSIFSV-FG-12VOLT ASAFSV-FG-20W-12V-BA15D-30-DEG USHIOFSV-FG-20W-12V-BA15D-30DEGREE USHIO
FSV-GCFSV-GC LAMPTECHFSV-GC/12V-20W-MR11-GLASS-COVER LAMPTECHFSV/12V/20W/BA15D/MR11CD ANSI
FSV/12V/20W/FG ANSIFSV/12V/20W/FRONT-GLASS ANSIFSV/12V/20W/MR11CD ANSIFSV/CG ANSI
FSV/CG MICROLAMPFSV/CG STANDARDPROFSV/FG-12V-20W ANSIFSV/FG-12V-20W ASA
FSV/FG-JDR/M12V20W/BA/FL30/FG-FACETED-46.5MMMOL-C-6-2900K-30DEG-FLOOD-600CP-2000H-1000612 BLVFSV/FG-JDR/M12V20W/BA/FL30/FG-FACETED-46.5MMMOL-C-6-2900K-30DEG-FLOOD-600CP-2000H-1000612 USHIOFSV/FG/12VFSVBL-12V-CG-BLUE-2000H/12V/20W/BA15D/MR11CD/BLUE/2000H ANSI
FSVCG/12V/20W/BA15D/MR11CD/2000H ANSIFSVCGBL/12V/20W/BA15D/MR11CD/BLUE/2000H ANSIFSVCGGR/12V/20W/BA15D/MR11CD/GREEN/2000H ANSIFSVCGRD/12V/20W/BA15D/MR11CD/RED/2000H ANSI
FSVGR-12V-CG-GREEN-2000H/12V/20W/BA15D/MR11CD/GREEN/2000H ANSIFSVRE-12V-CG-RED-2000H/12V/20W/BA15D/MR11CD/RED/2000H ANSIFTD-12V-BA15D-CG/12V/20W/BA15D/MR11CD/L ANSIFTD-BA15D-CG/12V/20W/BA15D/MR11CD/L ANSI
FTD-BA15D-L-12V-20WFTD-CG-DC/12V/20W/BA15D/MR11CD/L ANSIFTD-DC/12V/20W/BA15D/MR11CD/L ANSIFTD-L-BA15D ANSI
FTD-L-BA15D ASAFTD-L-BA15D-12VOLT ANSIFTD-L-BA15D-12VOLT ASAFTD-L-DC-12V
FTD-L/DC ANSIFTD-L/DC-12V ANSIFTD-L/DC-12V ASAFTD/12V/20W/BA15D/L ANSI
FTD/12V/20W/BA15D/MR11CD/L ANSIFTD/BA15D/LFTD/BA15D/L-12V-20W ANSIFTD/BA15D/L-12V-20W ASA
FTD/CG/TLFTD/DC/LFTD/FG/BA15D HALCOFTDBA15D-12V-BA15D-CG-2000H/12V/20W/BA15D/MR11CD/2000H ANSI
H/12V/20W/BA15D/MR11C/FLH/12V/20W/BA15D/MR11C/WFLH/12V/20W/BA15D/MR11CD/2000H/FSV-CGH/12V/20W/BA15D/MR11CD/FL
H/12V/20W/BA15D/MR11CD/FL/2000HH/12V/20W/BA15D/MR11CD/FL/2000H/JBR12V20WMR11CGFLH/12V/20W/BA15D/MR11CD/FL/2000H/JCR12V20WMR11DCFLCGH/12V/20W/BA15D/MR11CD/FL/2000H/Q20MRC11DC12V
H/12V/20W/BA15D/MR11CD/FL/BLUE/2000HH/12V/20W/BA15D/MR11CD/FL/BLUE/2000H/JBR12V20WMR11CGFLBLUEH/12V/20W/BA15D/MR11CD/FL/BLUE/2000H/JCR12V20WMR11DCFLCGBLUEH/12V/20W/BA15D/MR11CD/FL/GREEN/2000H
H/12V/20W/BA15D/MR11CD/FL/GREEN/2000H/JBR12V20WMR11CGFLGREENH/12V/20W/BA15D/MR11CD/FL/GREEN/2000H/JCR12V20WMR11DCFLCGGREENH/12V/20W/BA15D/MR11CD/FL/RED/2000HH/12V/20W/BA15D/MR11CD/FL/RED/2000H/JBR12V20WMR11CGFLRED
H/12V/20W/BA15D/MR11CD/FL/RED/2000H/JCR12V20WMR11DCFLCGREDH/12V/20W/BA15D/MR11CD/FTD-BA15D-CGH/12V/20W/BA15D/MR11CD/FTD-CG-DCH/12V/20W/BA15D/MR11CD/WFL
H/12V/20W/BA15D/MR11CD/WFL/2000HH/12V/20W/BA15D/MR11CD/WFL/2000H/JBR12V20WMR11CGWFLH/12V/20W/BA15D/MR11CD/WFL/2000H/JCR12V20WMR11DCWFLCGH/12V/20W/BA15D/MR11CD/WFL/2000H/Q20MRC11DCWFL12V
H/12V/20W/BA15D/MRC11/FLH/12V/20W/BA15D/MRC11/WFLH/12V/20W/BA15D/MRCD11/FLJBR12V20WMR11CGFL
JBR12V20WMR11CGFLBLUEJBR12V20WMR11CGFLGREENJBR12V20WMR11CGFLREDJBR12V20WMR11CGWFL
JCR12V20WMR11DCFLCGJCR12V20WMR11DCFLCGBLUEJCR12V20WMR11DCFLCGGREENJCR12V20WMR11DCFLCGRED
JCR12V20WMR11DCWFLCGJDR/M12V-20W/BA/FL/FG USHIOJDR/M12V-20W/BA/FL/FG/BA15D USHIOJDR/M12V-20W/BA/FL/FG/FSV USHIO
JDR/M12V-20W/BA/FL30/FG/BA15D USHIOJDR/M12V-20W/BA/FL30/FG/FSV USHIOJDR/M12V-20W/BA/MED/FG USHIOJDR/M12V-20W/BA/MED/FG/2000H USHIO
JDR/M12V-20W/BA/MED/FG/BA15D USHIOJDR/M12V-20W/BA15D/FL/FG USHIOJDR/M12V-20W/BA15D/FL/FG/2000H USHIOJDR/M12V20W/BA/MED/FST-FG USHIO
JDRM12V-20W/BA/FL30/FG USHIOJDRM12V-20W/BA/FL30/FG/12V/20W/BA15D/30DEGREE USHIOJDRM12V-20W/BA/FL30/FG/12V/20W/BA15D/30DEGREE/FSV/FG USHIOJDRM12V-20W/BA/FL30/FG/FSV/FG USHIO
JDRM12V20W/BA/FL30/FG/12V/20W/BA15D/30-DEG USHIOJDRM12V20W/BA/FL30/FG/12V/20W/BA15D/30-DEG/FSV/FG USHIOJM1283 IWASAKIJM1283 STANDARDPRO
JM1283-20MR11CG/DC/34DEG-FSV IWASAKIJM1283-20MR11CG/DC/34DEG-FSV-FSV/FG IWASAKIJM1283-BA15D-FGJM1283/BD/CG
JM1284 IWASAKIJM1284-12V20W/W/R/CG-DC IWASAKIJM1284-12V20W/W/RED/CG-DC IWASAKIJM1284-20MR11CG/DC/30DEG/R IWASAKI
JM1284.000 IWASAKIJM1284.000-12V20W/W/R/CG-DC IWASAKIJM1284.000-12V20W/W/RED/CG-DC IWASAKIJM1285 IWASAKI
JM1285-12V20W/W/G/CG-DC IWASAKIJM1285-12V20W/W/GREEN/CG-DC IWASAKIJM1285-20MR11CG/DC/30DEG/G IWASAKIJM1285.000 IWASAKI
JM1285.000-12V20W/W/G/CG-DC IWASAKIJM1285.000-12V20W/W/GREEN/CG-DC IWASAKIJM1286 IWASAKIJM1286-12V20W/W/B/CG-DC IWASAKI
JM1286-12V20W/W/BLUE/CG-DC IWASAKIJM1286-20MR11CG/DC/30DEG/B IWASAKIJM1286.000 IWASAKIJM1286.000-12V20W/W/B/CG-DC IWASAKI
JM1286.000-12V20W/W/BLUE/CG-DC IWASAKIJRM-12V-20W-2-FL-DC-FGJRM-12V-20W-2-WFL-DC-FGJRM-12V/20W/2/FL/DC/CG
JRM-12V/20W/2/WFL/DC/CGJRM-20WATT-2-FL-BA15D-FGJRM-20WATT-2-WFL-BA15D-FGJRM/12V/20W/2/FL/BA15D/CG
JRM/12V/20W/2/WFL/BA15D/CGJRM20W-2-FL-DC-FGJRM20W-2-WFL-DC-FGJRM20W-2M-DC-FG
JRM20W-2W-DC-FGJRM20W/2/FL/DC/CGJRM20W/2/WFL/DC/CGJRM20W/2M/DC/CG
JRM20W/2W/DC/CGMR-11/FSV/20W/CHINA/REF/BA15D/W/CVR/36DEGMR-11/FSV/20W/REF/BA15D/W/CVR/36DEGMR-8057PBA15D HIKARI
MR-8057PBA15D-MR11-FSV/20W-G4-CHINA-REF-BA15D-W/CVR-36-DEGMR11-FSV-20W-CHINA-REF-BA15D-COVERED-36-DEG HIKARIMR11-FSV/20W-G4-CHINA-REF-BA15D-W/CVR-36-DEGMR11-FTD-L-BA15D HALCO
MR11/FSV/20W/BA15D/W-CVR/36DEGMR11/FSV/20W/REFLECTOR/BA15D/W-CVR/36DEGMR11FTD/L/DC HALCOMR11FTD/L/TL HALCO
MR11FTD/L/TL/107105 HALCOMR11FTD/L/TL/107105/MR11/BA15D/FL/W/LENS/TWIST-LOCK/10/200/12V/700CBCP/2900K/2000H/C-6/1.77INCHMOL/BA30DEGMR8057P-BA15D-MR-11-FSV-20W-CHINA-REF-BA15D-COVERED-36DEG-844409003022 HIKARIMR8057P-DC
Q20MRC11DC12VQ20MRC11DCWFL12VS1952 SATCOSPQ20MR11CDBA15D12V-FSV-CG
SPQ20MR11CDBA15D12V-FTD-BA15D-CGSPQ20MR11CDBA15D12V-FTD-DC-CGSPQ20MR11CDDC12V-FSV-CGSPQ20MR11CDDC12V-FTD-BA15D-CG
