FTA ANSI Code

FTA ANSI is a MR11D lamp with a GZ4 base operating at 12 watts and 12 volts. It has a color temperature of 2900 Kelvin. The beam angle is 12°. It has a Dichroic finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FTA lamps.

Electrical Specifications

Amps1
Volts12
Watts12

Photometrics

Beam Angle12°
Beam SpreadNarrow Spot
Candlepower6,400cd
Color Temperature2900
Lumens6400

Physical Characteristics

BaseGZ4
Bulb ShapeMR11D
FilamentCC-6
FinishDichroic
Max Overall Length (MOL)1 3/8

Operating Characteristics

Burn PositionAny
Life Hours3500

General Information
Lamp CodeFTA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR11D Shape

MR11D
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

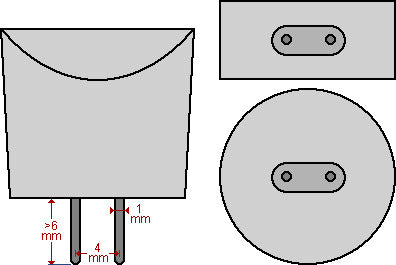

GZ4 Base

GZ4

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Ushio1000616FTA
Ushio1000615FTA
General Electric30768FTA
Microlites12-012-20R
Microlites12-020-21AR
Canimpex12-012-20R
Canimpex12-020-21AR

Equipment Used In

BrandModelType
Techniquip TQ-WTL Microscope
