FTD ANSI Code

FTD ANSI is a MR11 lamp with a GU4 base operating at 20 watts and 12 volts. It has a color temperature of 2900 Kelvin. The beam angle is 30°. It has a Dichroic finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FTD lamps.

Electrical Specifications

Amps1.67
Volts12
Watts20

Photometrics

Beam Angle30°
Candlepower600cd
Color Temperature2900

Physical Characteristics

BaseGU4
Bulb ShapeMR11
FilamentC-6 / C-8
FinishDichroic
Max Overall Length (MOL)1 3/8

Operating Characteristics

Burn PositionAny
Life Hours3500

General Information
Lamp CodeFTD
Code TypeANSI

MR11 Shape

MR11
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

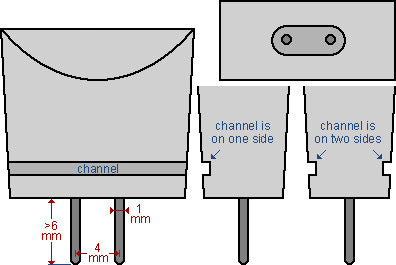

GU4 Base

GU4

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Atlas/ThornM/62
Bulbrite642320FTD
Bulbrite642322FTD/L
CEW Lighting53090FTD
CEW Lighting53590FTD-CG
Cool LuxLUX 010
Eiko15124FTD
Eiko15144FTD-FG
General Electric17187Q20MR11/NFL
General Electric25197FAM6Q20MR11NF/CD
General Electric30773Q20MR11/NFL30(FTD)
Grainger1C736
Halco107104MR11FTD/L
Osram Sylvania5510720MR11/FL/35 (FTD)
Osram Sylvania5513420MR11/T/FL35/C(FTD) 12V
Philips15676020MRC11/FL30/LAND/TP
Philips37822420MRC11/FL30 PRO FTD 50PK 12V
Philips419309BC20MRC11/FL30 FTD
SatcoS195020MR11/NFL/C
SatcoS315420MR11/NFL FTD
SatcoS342420MR11/NFL/2PK FTD
SatcoS346520MR11/NFL FTD
SLI Lighting6021020MR11/FL FTD
Sunlite03175FTD
Ushio1000621FTD, JDR/M12V-20W/G/NFL Q20MR11/NFL 20W 12V
Ushio1000622FTD/FG, JDR/M12V-20W/G/NFL/FG 20W 12V
HikariMR-8057-PCMR11 FTD Cover
Green Energy Lighting (GELCO)16009-GELMR11 FTD 12V-20W/W
Green Energy Lighting (GELCO)16109-GELMR11 FTD/FG 12V-20W/W/FG
Standard Products67901H20MR11/MFL/CG/2M/GU4/12V/FTD
Norman LampsFTD-C-BLUEFTD-BLUE
Norman LampsFTD-CFTD
Norman LampsFTD-C-REDFTD-RED
Norman LampsFTD-C-GREENFTD-GREEN
Norman LampsFTD-C-AMBERFTD-AMBER
Sunlite66165-SU20MR11/CG/GU10/FL/120V

Equipment Used In

BrandModelType
MLA Model 1000
