FTE ANSI Code
FTE ANSI is a MR11C lamp with a GZ4 base operating at 35 watts and 12 volts. It has a color temperature of 2900 Kelvin. The beam angle is 10°. It has a Dichroic finish. The average rated life is 3500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FTE lamps.
FTE Photograph |
 |
Electrical Specifications | |
| Amps | 2.92 |
|---|---|
| Volts | 12 |
| Watts | 35 |
Photometrics | |
| Beam Angle | 10° |
|---|---|
| Candlepower | 9,000cd |
| Color Temperature | 2900 |
Physical Characteristics | |
| Base | GZ4 |
|---|---|
| Bulb Shape | MR11C |
| Filament | C-6 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 1 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 3500 |
General Information | |
| Lamp Code | FTE |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | M/65, M/265 |

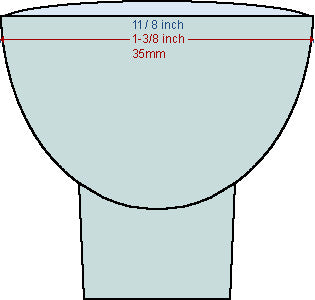

MR11C Shape | |
 | |
| Diameter Designation | 11/8" |
|---|---|
| Glass Diameter | 1 3/8" (1.375") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
GZ4 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Green Energy Lighting (GELCO) | 16114-GEL | MR11 FTE/FG 12V-35W/N/FG | |
| Microlites | 12-035-21ER | ||
| Canimpex | 12-035-21ER | ||
| Biclite | 11267 | FTE | |
| Biclite | 11305 | FTE | |
| Orbitec | 130392 | H 68065 | |
| Orbitec | 131272 | H 68065 F | |
Equipment Used In | ||
| Brand | Model | Type |
| Altman Lighting | Micro Strip MICS-1 | Stage / Studio |
| Altman Lighting | Micro Strip MICS-2 | Stage / Studio |
| Altman Lighting | Micro Strip MICS-3 | Stage / Studio |
