FTF ANSI Code
FTF ANSI is a MR11 lamp with a GU4 base operating at 35 watts and 12 volts. It has a color temperature of 2900 Kelvin. The beam angle is 24°. It has a Dichroic finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FTF lamps.

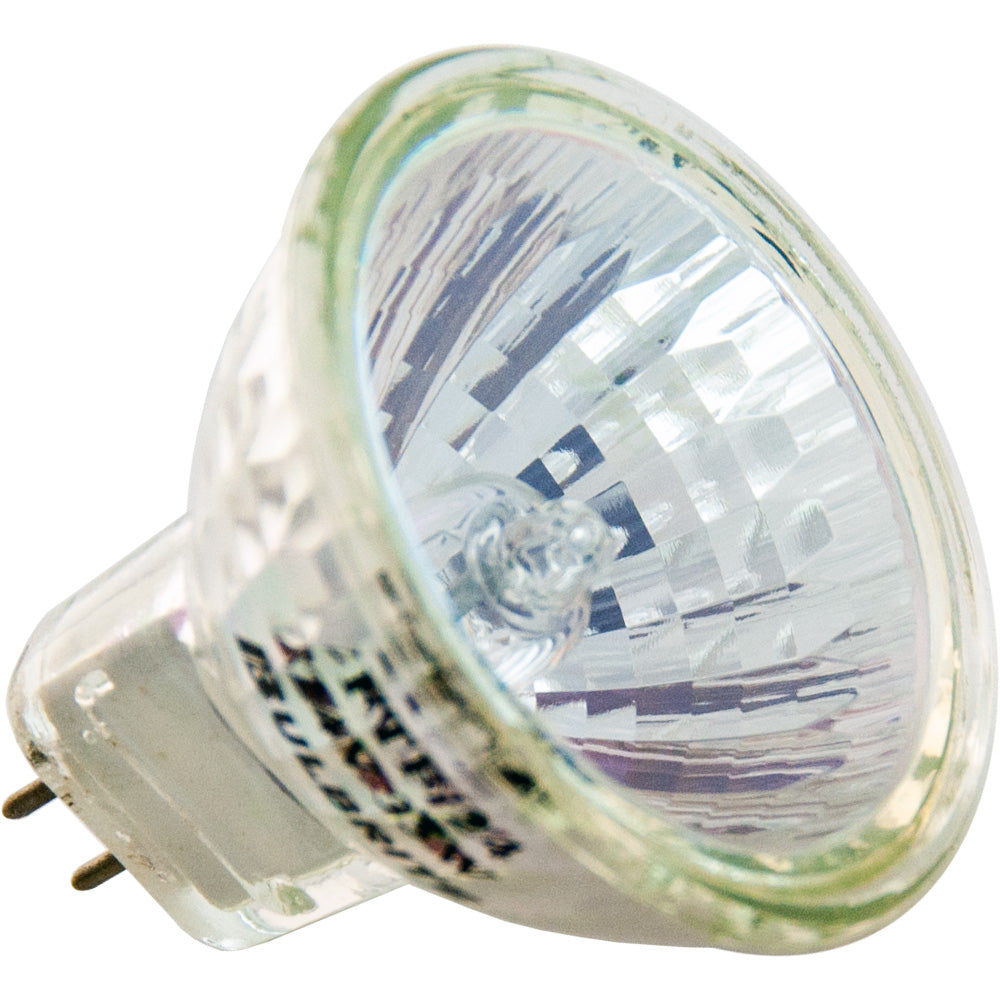

FTF Photograph |
 |
Electrical Specifications | |
| Volts | 12 |
|---|---|
| Watts | 35 |
Photometrics | |
| Beam Angle | 24° |
|---|---|
| Beam Spread | Narrow Flood |
| Candlepower | 3,000cd |
| Color Temperature | 2900 |
| Lumens | 345 |
Physical Characteristics | |
| Base | GU4 |
|---|---|
| Bulb Shape | MR11 |
| Filament | C-6 / C-8 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 1 3/8 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 3000 |
General Information | |
| Lamp Code | FTF |
|---|---|
| Code Type | ANSI |
MR11 Shape | |
 | |
| Diameter Designation | 11/8" |
|---|---|
| Glass Diameter | 1 3/8" (1.375") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
GU4 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Green Energy Lighting (GELCO) | 16115-GEL | MR11 FTF/FG 12V-35W/M/FG | |
| Green Energy Lighting (GELCO) | 16015-PECJ | MR11 FTF 12V-35W/M | |
| Green Energy Lighting (GELCO) | 16115-PECJ | MR11 FTF/FG 12V-35W/M/FG | |
| Standard Products | 67899 | H35MR11/NFL/CG/GU4/12V/FTF | |
