FTK ANSI Code
FTK ANSI is a T6 lamp with a GY9.5 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FTK lamps.

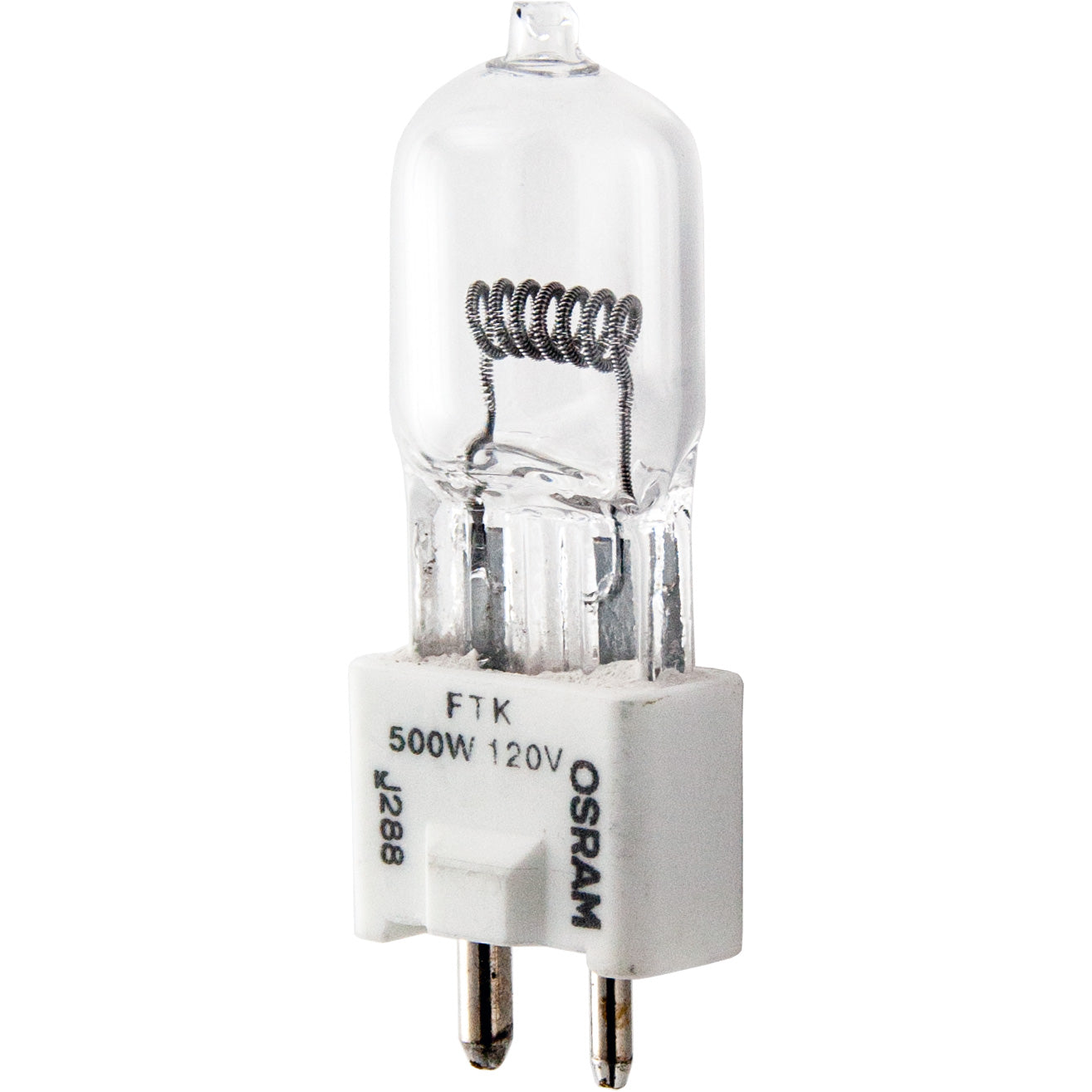

FTK Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 500 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 1 7/16 |
| Lumens | 12000 |
Physical Characteristics | |
| Base | GY9.5 |
|---|---|
| Bulb Shape | T6 |
| Filament | CC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 1/2 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 200 |
General Information | |
| Lamp Code | FTK |
|---|---|
| Code Type | ANSI |
T6 Shape | |
 | |
| Diameter Designation | 6/8" |
|---|---|
| Glass Diameter | 3/4" (0.75") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GY9.5 Base |
 |
