FTM ANSI Code

FTM ANSI is a T10 lamp with a GY16 base operating at 2000 watts and 230/240 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FTM lamps.

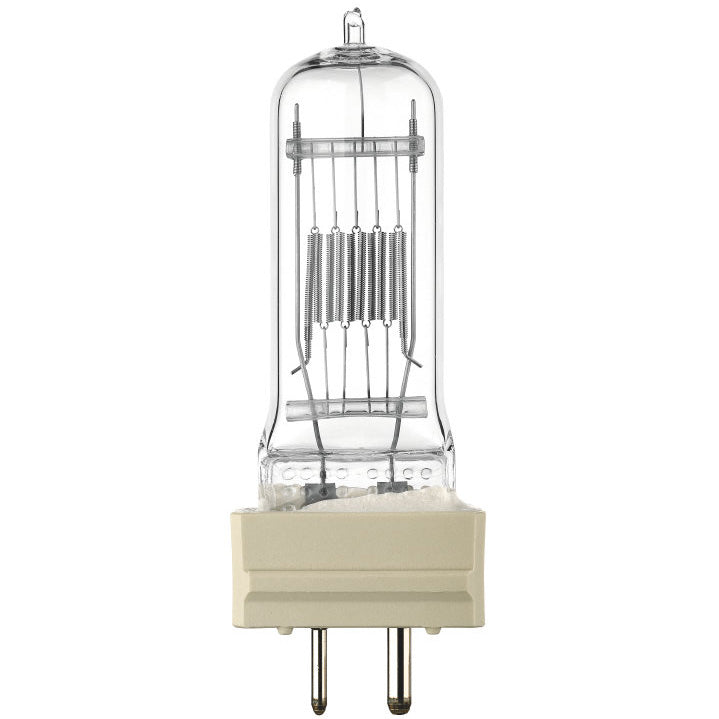

FTM Photograph

FTM

Electrical Specifications

Amps9.09
Volts230/240
Watts2000

Photometrics

Candlepower4300
Color Temperature3200
Light Center Length (LCL)2 3/4
Lumens54000

Physical Characteristics

BaseGY16
Bulb ShapeT10
FilamentC-13
FinishClear
Max Overall Length (MOL)5 11/16
Diameter1.339"

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours400

General Information
Lamp CodeFTM
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsCP/43-225

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

GY16 Base

GY16

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Osram Sylvania5448564788 CP/72 FTM 240V
Osram Sylvania5448464788 CP/72 FTM 230V
Microlites220-2000-30
Microlites220-2000-30M
Canimpex220-2000-30
Canimpex220-2000-30M
