FVL ANSI Code
FVL ANSI is a T12 lamp with a GX5.3 base operating at 200 watts and 120 volts. It has a color temperature of 3200 Kelvin. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FVL lamps.

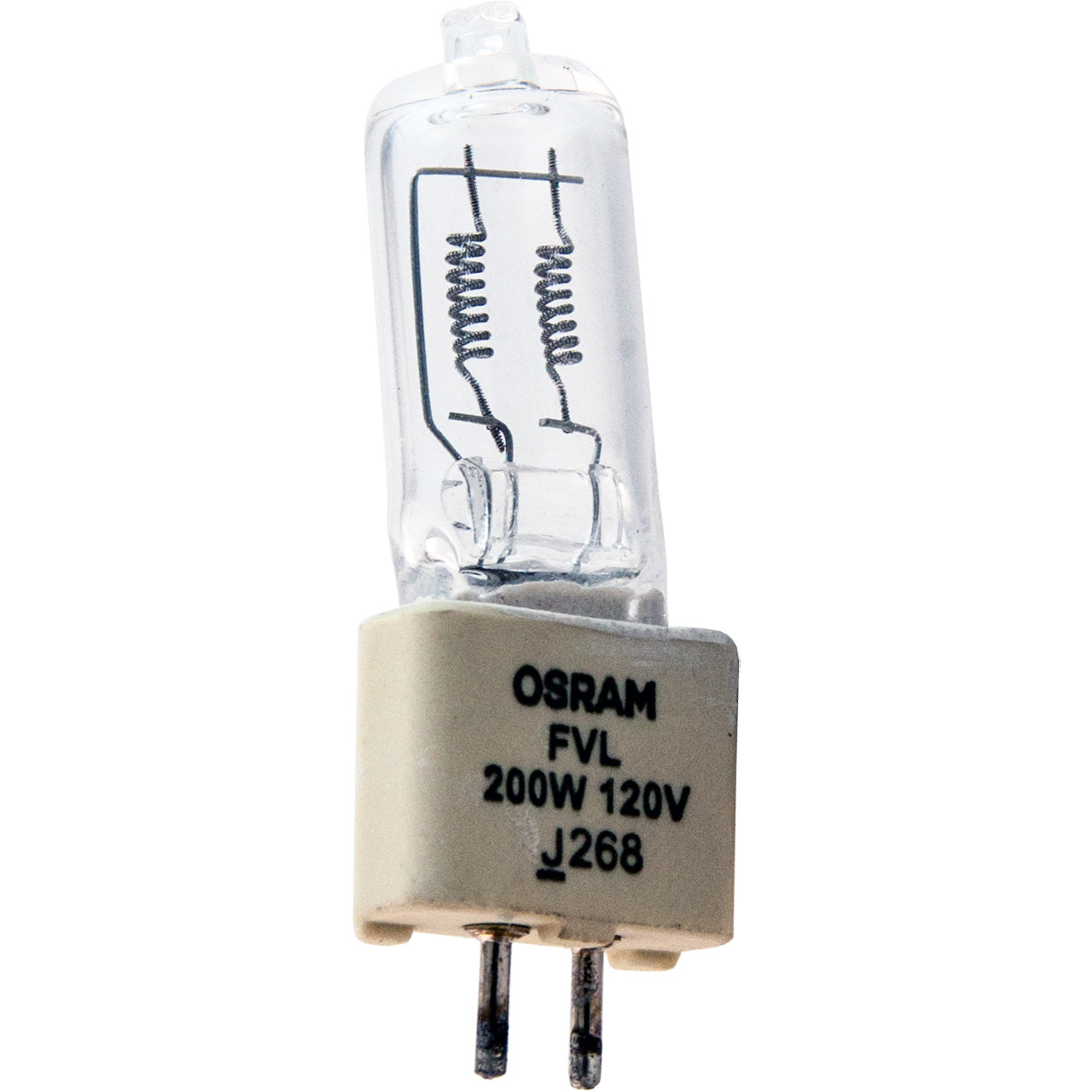

FVL Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 200 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 1.26" |
| Lumens | 5200 |
Physical Characteristics | |
| Base | GX5.3 |
|---|---|
| Bulb Shape | T12 |
| Filament | 2CC-8 |
| Max Overall Length (MOL) | 2.125" |
| Diameter | 0.5" |
Operating Characteristics | |
| Life Hours | 200 |
|---|---|
General Information | |
| Lamp Code | FVL |
|---|---|
| Code Type | ANSI |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
2CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Osram Sylvania | 54459 | FVL | Available |
