FXL ANSI Code

FXL ANSI is a MR16 lamp with a GY5.3 base operating at 410 watts and 82 volts. It has a color temperature of 3300 Kelvin. It has a Dichroic finish. The average rated life is 38 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI FXL lamps.

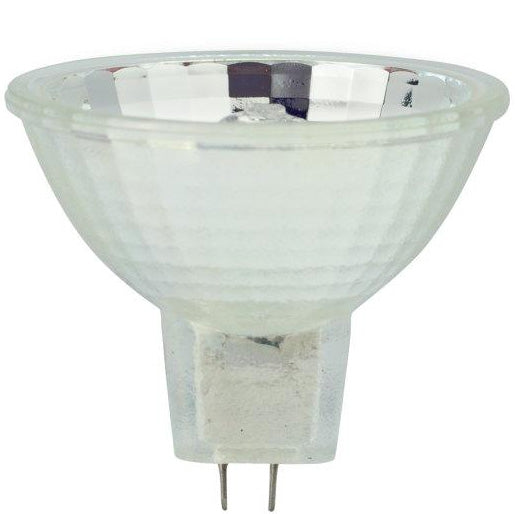

FXL Photograph

FXL

Electrical Specifications

Amps5
Volts82
Watts410

Photometrics

Color Temperature3300
Lumens4700 lux

Physical Characteristics

BaseGY5.3
Bulb ShapeMR16
FilamentCC-8
FinishDichroic
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours38

General Information
Lamp CodeFXL
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

GY5.3 Base

GY5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko03501FXL
General Electric21613FXL
Grainger1K245
Osram Sylvania54912FXL 93526
Philips230300FXL 82V 411W
Sunlite70235FXL
Ushio1000636FXL, JCR82V-410W
Kahoku Lighting Solutions (KLS)62084-KLSFXL Japan
Eiko15151FXL (WIKO)
Rexim, LLCRM-131
Microlites82-410-33R
Microlites82-410-33RSP
Canimpex82-410-33R
Canimpex82-410-33RSP

Equipment Used In

BrandModelType
3M Model 1745 Projector
3M Model 955D
3M 9085
3M 9750
3M 9075
3M Model 1765 Projector
3M 9550
3M 9200
3M 7100
3M 9600
3M HA-6005
3M 9700
3M Model 955
ASK Proxima DP-2700
ASK Proxima DP-2400
ASK Proxima DP-2710
ASK Proxima DP-2300
ASK Proxima DP-2800
ASK Proxima DP-2750
ASK Proxima DP-2810
Apollo A1-2014
Apollo Odyssey
Apollo A-2240
Apollo A1-2040
Apollo Legend T200
Apollo AI-2001 Eclipse
Apollo Concept
Apollo AVP-400 Video Projector
Apollo A1 2240
Apollo Legend T20
Apollo AI-2000 Eclipse
Apollo A-2000 Eclipse
Apollo A-2034 Eclipse
Apollo 10700 Companion
Apollo AI-2004 Eclipse
Apollo A-2001 Eclipse
Apollo A1-2204 220V
Apollo A-2040
Apollo A-2014
Apollo AI-2034 Eclipse
Apollo Eclipse w/ LCD Panel
Apollo A-2004 Eclipse
Apollo AI-2014
Apollo A-2204 (220V Units)
Boxlight 2000+ Colorshow Multimedia Projector
Boxlight 2000
Boxlight 2101
Boxlight 2101 Procolor Multimedia Projector
Boxlight 2000 Colorshow Multimedia Projector
Boxlight 2105
Buhl 2914
Buhl 120-EB
Buhl 121-EB
Buhl 2914-C
Buhl 2916
Buhl 2912-C
Buhl 2914LCD
Buhl 2953
Buhl 2953-TC
Buhl 122
Buhl 112-EB
Buhl 2913-C
Buhl 112
Da-Lite (Bessler) 5000 Overhead Projector
Dukane 28A4001
Dukane 28A4500
Dukane 28A640
Dukane Starfire SF4030
Dukane Starfire SF4010
Dukane Model 4003
Dukane Model 4000
Dukane 4200 Series
Dukane 28A4000
Dukane 28A4002
Dukane Lumens Attache 4000 Projector
Dukane 4100 Series
Dukane Model 850
Dukane Magnatview 850 Projector
Dukane 28A4003
EIKI OHP-4100
EIKI OHP-3990
EIKI 3980
EIKI 3990
EIKI 4100
EIKI OHP-3980
Elmo HP-L290
Elmo HP-L355
Elmo HP4K-DX
Executive 5500
Executive 4320
InFocus LitePro LP-410P Multimedia Projector
Lightware Viewpoint
Neumade ML400P
Polaroid Polaview 80
Polaroid Polaview 85
Polaroid Polaview 90
Polaroid PB90
Pro-Lite 300
Sayett Mediashow AV Data
Sayett AV-9800
Sayett Mediashow XC
Sayett Mediashow Traveler
Sayett Mediashow AV
Telex P170V
Telex P170
V-Rex VR2000
nVue NFINITY LCD Projector
nVue 115
nVue 110
