G4T5 UVC Germicidal Code
G4T5 UVC Germicidal is a T5 lamp with a G5 base operating at 4 watts . It produces a UVC spectrum output. It has a Clear finish. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for UVC Germicidal G4T5 lamps.
G4T5 Photograph |
 |
Electrical Specifications | |
| Amps | 0.17 |
|---|---|
| Watts | 4 |
Photometrics | |
| Spectrum | UVC |
|---|---|
Physical Characteristics | |
| Base | G5 |
|---|---|
| Bulb Shape | T5 |
| Finish | Clear |
| Max Overall Length (MOL) | 6" |
| Diameter | 0.63" |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
General Information | |
| Lamp Code | G4T5 |
|---|---|
| Code Type | UVC Germicidal |
T5 Shape | |
 | |
| Diameter Designation | 5/8" |
|---|---|
| Glass Diameter | 5/8" (0.625") |
| Shape Code | T |
| Shape Classification | Tubular |

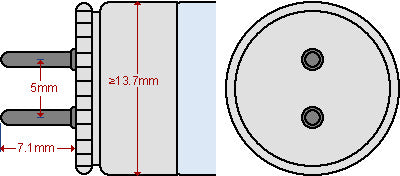

G5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Atlantic Ultraviolet | 05-1110-R | G4T5 | Available |
| Eiko | G4T5 | ||
| General Electric | 15872 | G4T5 | |
| Light Sources | LTC4T5 | ||
| LightTech | LTC4T5 | ||
| Osram Sylvania | 23397 | G4T5 G4T5/OF HNS 4W G5 | |
| Philips | 363713 | TUV 4W | Available |
| Sankyo Denki | G4T5 | ||
| Ushio | 3000013 | G4T5 | Available |
| Hikari | GL-G4T5 | G4T5 | Available |
| American Ultraviolet | GML180 | G4T5 | Available |
| Osram Sylvania | 0002328 | G4 T5 | |
| Hybec Corporation | G4T5 | G4T5 | |
| Orbitec | 7859 | XG 1067 | |
Equipment Used In | ||
| Brand | Model | Type |
| American Ultraviolet | UFR-4-H | |
| American Ultraviolet | UFA-4-H | |
| American Ultraviolet | UF-4-H | |
| American Ultraviolet | CE-6-H | |
| AquaStar | Portable Water Purifier | |
| Aquanetics Systems | Q4IL | |
| Aquanetics Systems | Q4SPT | |
| Aquanetics Systems | ALA-4 | |
| Aquanetics Systems | Aquanetics 4 | |
| Atlantic Ultraviolet | Biolux NO4GS Stand Fixture | |
| Atlantic Ultraviolet | Biolux NO4G Handheld Fixture | |
| Atlantic Ultraviolet | Biolux 4 Watt Strip Fixture | |
| Cole-Parmer | UX-09815-12 | |
| Cole-Parmer | 34-0003-01 | |
| Custom SeaLife | PUVLB504 | |
| EcoQuest Manufacturing | UV4 | |
| EcoQuest Manufacturing | G4T5UV | |
| EcoQuest Manufacturing | 70059 | |
| EcoQuest Manufacturing | US70059 | |
| EcoQuest Manufacturing | Fresh Air UV4 | |
| EdenPure | ZW4S15W-Z135 | |
| EdenPure | WGEP-1000 | |
| EdenPure | G-7 | |
| Hawaiian Marine | AN-4S | |
| Hawaiian Marine | AN-4SA | |
| Orbitec | 007859 | |
| Purely UV Products | PUVLB504 | |
| Spectroline | EF-140C | |
| Spectroline | BLE-2537S | |
| Spectronics | PE-240T | |
| Spectronics | Q-22NF | |
| Spectronics | PE-140T | |
| Spectronics | BLE-2537/S | |
| Ultraviolet Products (UVP LLC) | UVGL-25 Hand Held | Short & Midwave UV |
