G8T5E UVB Code

G8T5E UVB is a T5 lamp with a G5 base operating at 8 watts . It produces a UVB spectrum output. It has a UVB Phosphor finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for UVB G8T5E lamps.

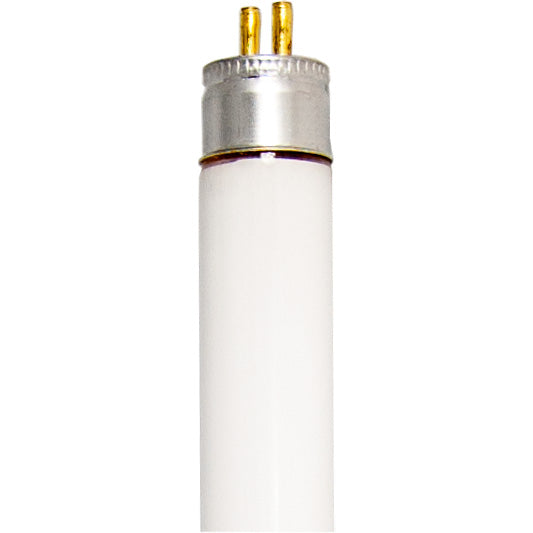

G8T5E Photograph

G8T5E

Electrical Specifications

Watts8

Photometrics

SpectrumUVB

Physical Characteristics

BaseG5
Bulb ShapeT5
FinishUVB Phosphor
Max Overall Length (MOL)12"
Diameter0.63"

Operating Characteristics

Burn PositionAny
Life Hours3000

General Information
Lamp CodeG8T5E
Code TypeUVB

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Sankyo DenkiG8T5E
HikariGLE-G8T5EG8T5E
Ushio3000318G8T5E Midrange, 7.2W T5

Equipment Used In

BrandModelType
Ultraviolet Products (UVP LLC) 34-0042-01 Transilluminator

G8T5E may also be listed as:
3-4406 PHOTODYNEBLE/8/T/312 SPECTRONICSBLE/8/T312 SPECTRONICSBLE/8T/312 SPECTRONICS
BLE/8T312 SPECTRONICSBLE8/T/312 SPECTRONICSBLE8/T312 SPECTRONICSBLE8T/312 SPECTRONICS
BLE8T312 SPECTRONICSF/8/T5/UVB CANIMPEXF/8/T5/UVB MICROLITESF/8W/T5/G5/12INCH/UVB
F/8W/T5/UVBF/12INCH/T5/G5/8W/UVBF8T5UVB CANIMPEXF8T5UVB MICROLITES
