GAX ANSI Code

GAX ANSI is a MR11CD lamp with a GZ4 base operating at 35 watts and 12 volts. It has a color temperature of 3050 Kelvin. The beam angle is 36°. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GAX lamps.

Electrical Specifications

Amps2.92
Volts12
Watts35

Photometrics

Beam Angle36°
Candlepower88
Color Temperature3050
Lumens1100

Physical Characteristics

BaseGZ4
Bulb ShapeMR11CD

Operating Characteristics

Burn PositionANY
Life Hours3000

General Information
Lamp CodeGAX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

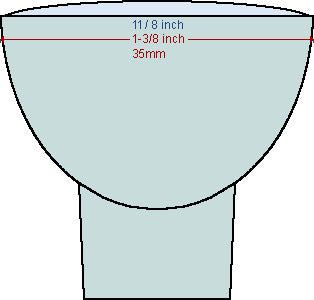

MR11CD Shape

MR11CD
Diameter Designation11/8"
Glass Diameter 1 3/8" (1.375")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

GZ4 Base

GZ4

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIGAX

GAX may also be listed as:
1002180 USHIO115211 BLV115211/12V/35W BLV115251 BLV
115251/12V/35W BLV11528101 BLV203329GAX
GAX ANSIGAX ASAGAX-12V-35WGAX-12V-35W ANSI
GAX-12V-35W ASAGAX-12V-CG/12V/35W/GZ4/MR11CD ANSIGAX-12V/12V/35W/GZ4/MR11D ANSIGAX-12VANSI
GAX-12VANSI ANSIGAX-12VANSI ASAGAX-CG/12V/35W/GZ4/MR11CD ANSIGAX-FG
GAX-FG ANSIGAX-FG ASAGAX-FG BLVGAX-FG INTERLIGHT
GAX-FG USHIOGAX-FG-12VGAX-FG-12V ANSIGAX-FG-12V ASA
GAX-FG-12V-35WGAX-FG-12VOLT ANSIGAX-FG-12VOLT ASAGAX/12V/35W/FG ANSI
GAX/12V/35W/FRONT-GLASS ANSIGAX/12V/35W/GZ4 ANSIGAX/12V/35W/GZ4/FG ANSIGAX/12V/35W/GZ4/MR11CD ANSI
GAX/12V/35W/GZ4/MR11D ANSIGAX/CG ANSIGAX/FG-12V-35W ANSIGAX/FG-12V-35W ASA
GAX/FG12GAX/FG12 ANSIGAX/FG12 ASAH/12V/35W/BZ4/MR11CD/36DEG
H/12V/35W/BZ4/MR11CD/FLH/12V/35W/GZ4/MR11CD/3000H/GAX-CGH/12V/35W/GZ4/MR11D/3000H/GAXH/12V/35W/GZ4/MR11D/36DEG
H/12V/35W/GZ4/MR11D/FLHC3.012.035.36 BAILEYHM3.012.035.36 BAILEYSPQ35MR11CDGZ412V-GAX-CG
SPQ35MR11DGZ412V-GAX
