GBF ANSI Code

GBF ANSI is a ALR12 lamp with a BA15d base operating at 20 watts and 12 volts. It has a color temperature of 3000 Kelvin. The beam angle is 32°. It has a Alu Sealed finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GBF lamps.

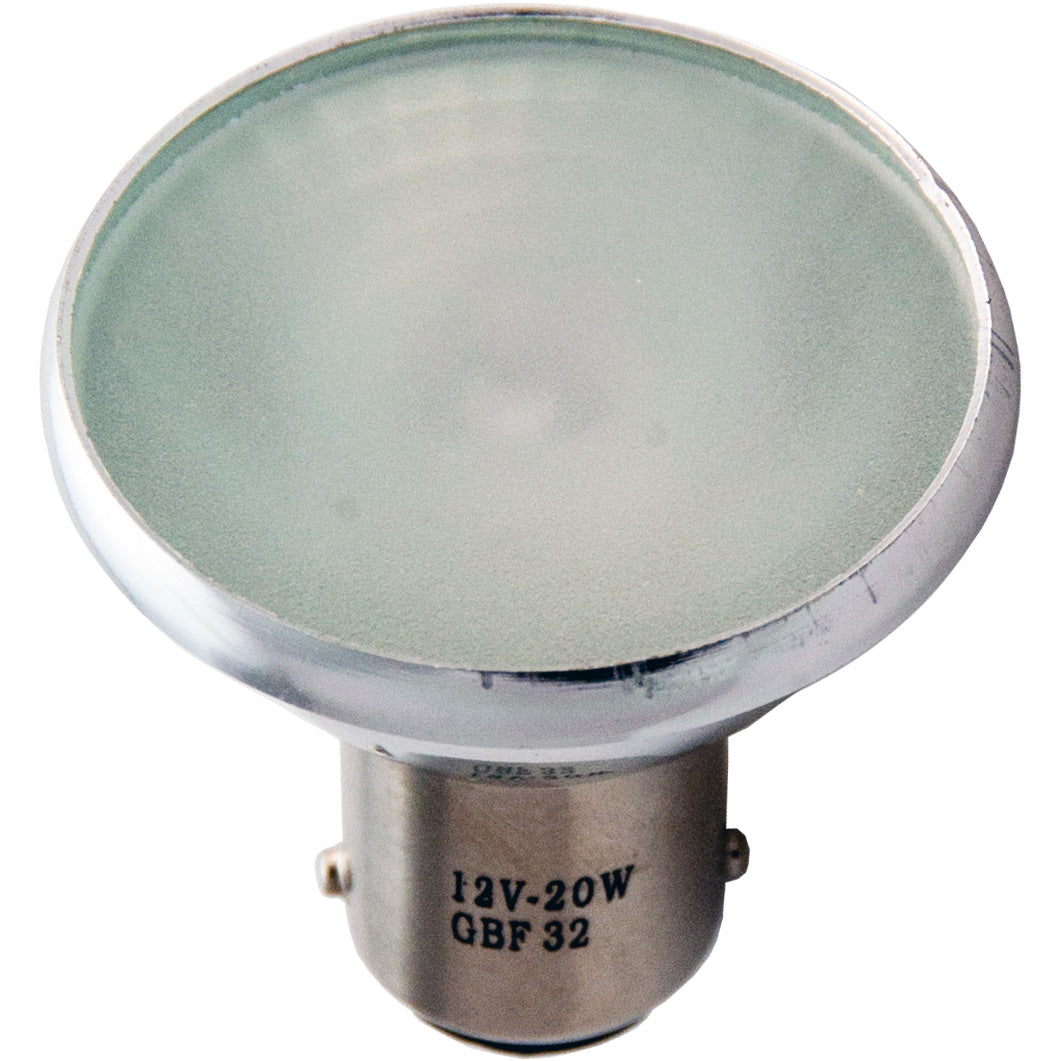

GBF Photograph

GBF

Electrical Specifications

Amps1.67
Volts12
Watts20

Photometrics

Beam Angle32°
Beam SpreadMedium Flood
Candlepower350cd
Color Temperature3000
Lumens750

Physical Characteristics

BaseBA15d
Bulb ShapeALR12
FilamentC-6
FinishAlu Sealed
Max Overall Length (MOL)1.38" (35mm)

Operating Characteristics

Burn PositionAny
Life Hours3000

General Information
Lamp CodeGBF
Code TypeANSI
Specification ReferenceANSI-SR24F2002

ALR12 Shape

ALR12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeALR
Shape ClassificationAluminized Reflector

C-6 Filament

C-6
Coil TypeC - Single Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
HikariALR-GBF-CGBF 12V 20W 32deg Frost Teflon Coated
Green Energy Lighting (GELCO)16310-GELGBF ALR12 12V-20W/W/BA15D/FR
Green Energy Lighting (GELCO)16312-GELGBF-C ALR12 12V-20W/W/BA15D/FR
SatcoS3937GBF SHATTER 12V 20W BA15D FL
SatcoS418920ALR12/FL32 FROST GBF BA15D
Standard Products5506220ALR12/F/FL/BA15d/12V/GBF STD
Norman LampsGBF-IGBF Elevator Bulb 12V 20W Halogen
Philips6435FRGBF
Bulbrite674422GBF
Microlites12-020-03FR
Canimpex12-020-03FR
