GCB ANSI Code

GCB ANSI is a T3.5 lamp with a G5.3 base operating at 200 watts and 30 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GCB lamps.

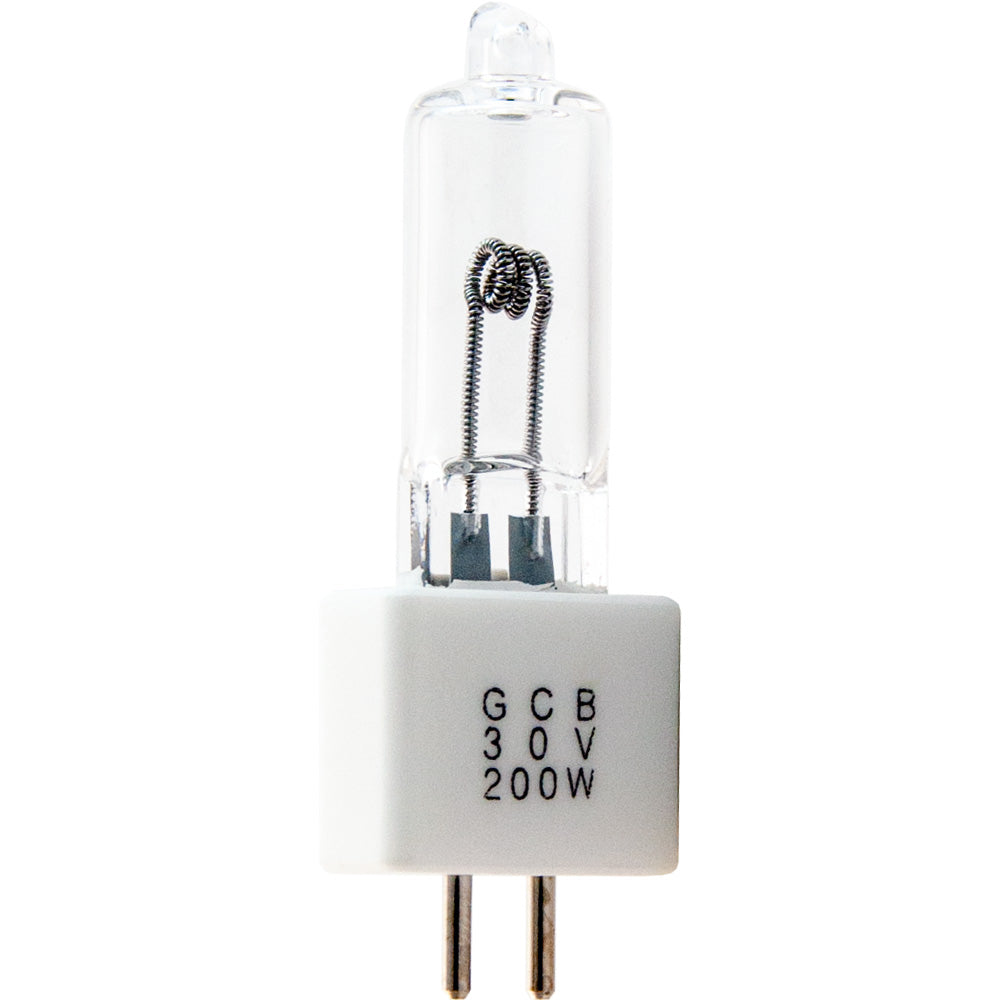

GCB Photograph

GCB

Electrical Specifications

Amps6.67
Volts30
Watts200

Photometrics

Candlepower420
Color Temperature3200
Light Center Length (LCL)1 1/8
Lumens6300

Physical Characteristics

BaseG5.3
Bulb ShapeT3.5
FilamentC-8
FinishClear
Max Overall Length (MOL)2 1/4

Operating Characteristics

Burn PositionAny
Life Hours200

General Information
Lamp CodeGCB
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T3.5 Shape

T3.5
Diameter Designation3.5/8"
Glass Diameter 7/16" (0.4375")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762380GCB
Microlites30-200
Microlites30-200-22
Canimpex30-200
Canimpex30-200-22

Equipment Used In

BrandModelType
Lowel VIP Pro Stage / Studio
