GCC ANSI Code

GCC ANSI is a T3.5 lamp with a G5.3 base operating at 100 watts and 12 volts. It has a color temperature of 3300 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GCC lamps.

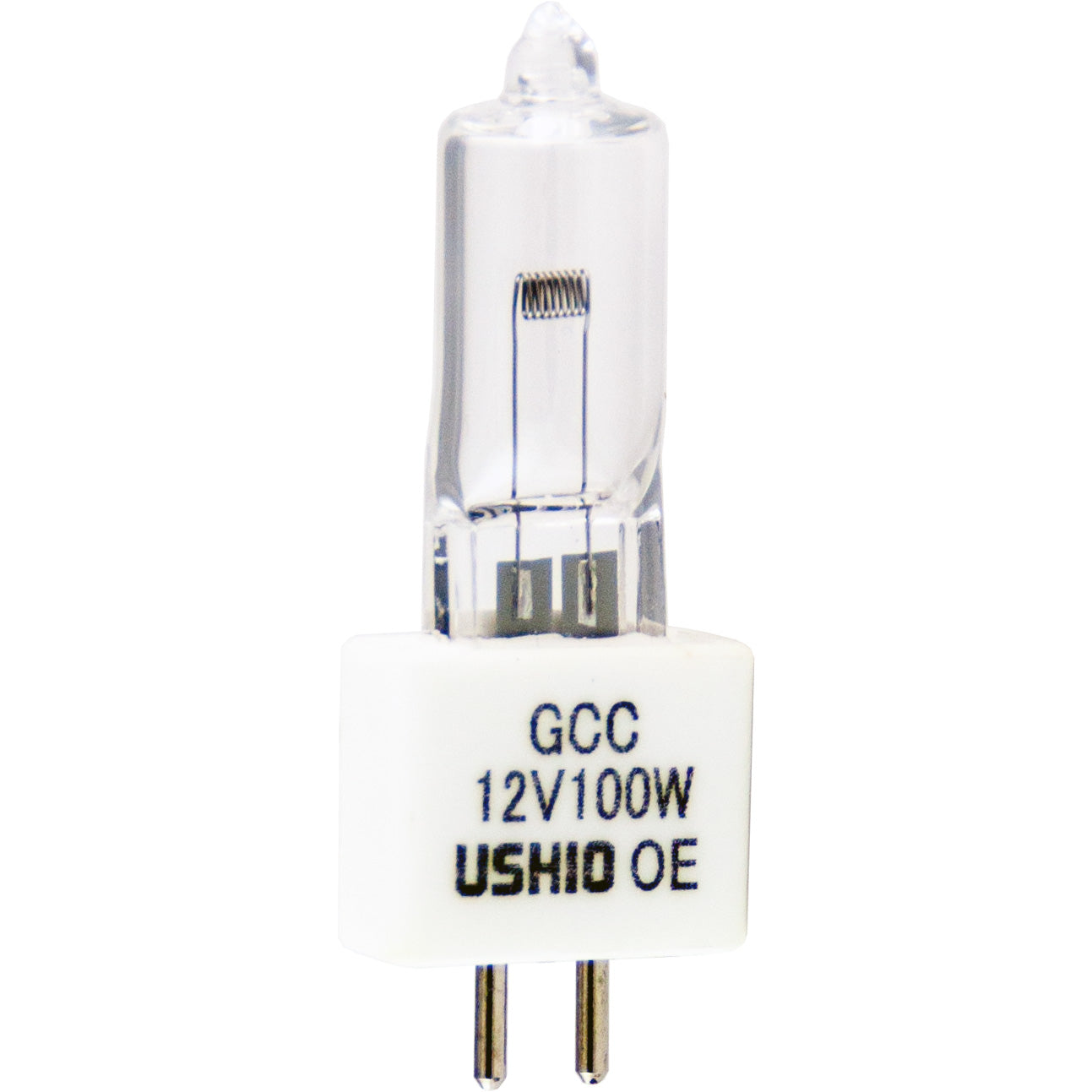

GCC Photograph

Electrical Specifications
Amps	8.33
Volts	12
Watts	100

Photometrics
Candlepower	250
Color Temperature	3300
Light Center Length (LCL)	1 1/4
Lumens	2900

Physical Characteristics
Base	G5.3
Bulb Shape	T3.5
Filament	C-8
Finish	Clear
Max Overall Length (MOL)	2 1/4

Operating Characteristics
Burn Position	Any
Life Hours	200

General Information
Lamp Code	GCC
Code Type	ANSI
Specification Reference	ANSI-SR24F2002

T3.5 Shape

Diameter Designation	3.5/8"
Glass Diameter	7/16" (0.4375")
Shape Code	T
Shape Classification	Tubular

C-8 Filament

Coil Type	C - Single Coil

G5.3 Base

Cross Reference Part Numbers
Brand	MPN	Description	Availability
Bulbrite	762385	GCC
Lowel	GCC
Osram Sylvania	54432	GCC
Ushio	1000649	GCC, JC12V-100WC5	Available
Microlites	12-100-26C
Canimpex	12-100-26C

Equipment Used In
Brand	Model	Type
Lowel	VIP Pro	Stage / Studio

GCC may also be listed as:
031293035059 EIKO	3505	03505 EIKO	03505 UPC
03505 WIKO	048777142561 UPC	1000649 USHIO	12/100GCC USHIO
12/100W/GCC USHIO	12V/100GCC USHIO	12V100W/GCC USHIO	12VOLT-100WATT-GCC USHIO
3129303505 WIKO	54432	54432 OSRAM	54432 SYLVANIA
54432/GCC SYLVANIA	762385 BULBRITE	942105	GCC
GCC ANSI	GCC ASA	GCC BULB-DIRECT	GCC BULBRITE
GCC EIKO	GCC INTERLIGHT	GCC LAMPTECH	GCC MICROLAMP
GCC OSRAM	GCC SYLVANIA	GCC USHIO	GCC WIKO
GCC-100W-12V-G5.3 USHIO	GCC-12V	GCC-12V ANSI	GCC-12V ASA
GCC-12V-100W	GCC-12V-100W ANSI	GCC-12V-100W ASA	GCC-12V-100W-G5.3 USHIO
GCC-12V-100W-G5.3-T3-C8-CLEAR-2900L-3300K-200H-ANY-2-1/4MOL-1-1/4LCL-Q-VIDEO-CAMERA	GCC-12V/12V/100W/G5.3 ANSI	GCC-12VOLT ANSI	GCC-12VOLT ASA
GCC/12	GCC/12 ANSI	GCC/12 ASA	GCC/12V-100W-T-3-1-2-MINI-2-P LAMPTECH
GCC/12V/100W OSRAM	GCC/12V/100W PHILIPS	GCC/12V/100W/G5.3 ANSI	GCC/G5.3 USHIO
GCC12V100W/GCC-12V-100W PHILIPS	H/12V/100W/G5.3/T3/FC6/200H	H/12V/100W/G5.3/T3/FC6/200H/GCC	JC12V-100WC5 USHIO
JC12V-100WC5/G5.3/FC6/200H USHIO	JC12V-100WC5/GCC USHIO	JC12V100WC5-CBAR6-200HR USHIO	JC12V100WC5-CBAR6-200HR/12V/100W/G5.3 USHIO
JC12V100WC5-CBAR6-200HR/12V/100W/G5.3/GCC USHIO	JC12V100WC5-CBAR6-200HR/GCC USHIO	JC12V100WC5-G5.3 USHIO	SPQ100T3G5.3FC6-12V
SPQ100T3G5.3FC612V-GCC
