GDA ANSI Code

GDA ANSI is a T4 lamp with a R7s base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GDA lamps.

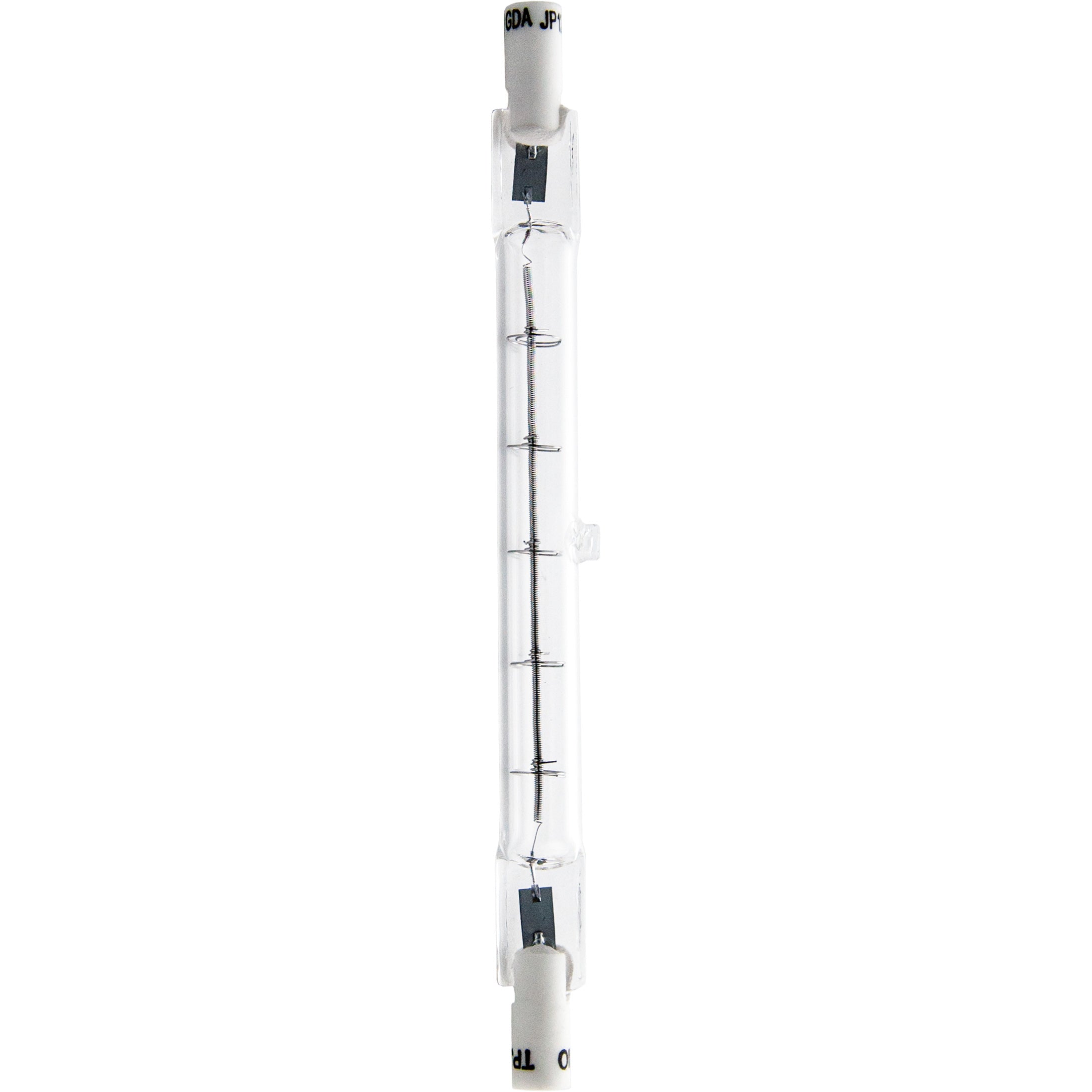

GDA Photograph

GDA

Electrical Specifications

Amps2.08
Volts120
Watts500

Photometrics

Candlepower880
Color Temperature3200
Light Center Length (LCL)2.94" (74.7mm)
Lumens12500

Physical Characteristics

BaseR7s
Bulb ShapeT4
FilamentC-8
FinishClear
Max Overall Length (MOL)2.95" (75mm)

Operating Characteristics

Burn PositionH ± 4°
Life Hours50

General Information
Lamp CodeGDA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762390GDA
Philips211847GDA
Ushio1000652GDA, JP120V-500WC2
Microlites120-500-75A
Microlites220-500-75A
Microlites240-500-75A
Canimpex120-500-75A
Canimpex220-500-75A
Canimpex240-500-75A

Equipment Used In

BrandModelType
Lowel VIP V Stage / Studio
Lowel V-Light Stage / Studio
