GEP ANSI Code

GEP ANSI is a MR16CD lamp with a BA15d base operating at 35 watts and 12 volts. It has a color temperature of 3050 Kelvin. The beam angle is 24°. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GEP lamps.

Electrical Specifications

Amps2.92
Volts12
Watts35

Photometrics

Beam Angle24°
Beam SpreadNarrow Flood
Color Temperature3050

Physical Characteristics

BaseBA15d
Bulb ShapeMR16CD

Operating Characteristics

Burn PositionANY
Life Hours3000

General Information
Lamp CodeGEP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

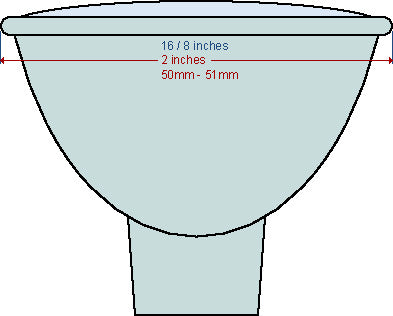

MR16CD Shape

MR16CD
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIGEP

GEP may also be listed as:
105332 BLV105332/12V/35W BLV105342 BLV105342/12V/35W BLV
GEPGEP ANSIGEP ASAGEP-12V
GEP-12V ANSIGEP-12V ASAGEP-12V-35WGEP-12V-35W ANSI
GEP-12V-35W ASAGEP-12V-CG/12V/35W/BA15D/MR16CD ANSIGEP-12V/12V/35W/BA15D/MR16D ANSIGEP-12VOLT ANSI
GEP-12VOLT ASAGEP-CG/12V/35W/BA15D/MR16CD ANSIGEP/12GEP/12 ANSI
GEP/12 ASAGEP/12V/35W/BA15D/MR16CD ANSIGEP/12V/35W/BA15D/MR16D ANSIGEP/12V/35W/FG ANSI
GEP/CG ANSIH/12V/35W/BA15D/MR16CD/3000H/GEP-CGH/12V/35W/BA15D/MR16D/3000H/GEPSPQ35MR16CDBA15D12V-GEP-CG
SPQ35MR16CDDC12V-GEP-CGSPQ35MR16DBA15D12V-GEPSPQ35MR16DDC12V-GEP
