GKT ANSI Code
GKT ANSI is a T3.5 lamp with a G5.3 base operating at 410 watts and 82 volts. It has a color temperature of 3400 Kelvin. The average rated life is 38 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GKT lamps.

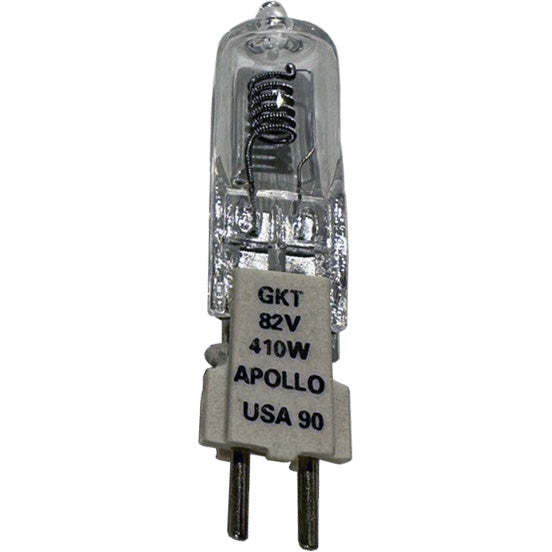

GKT Photograph |
 |
Electrical Specifications | |
| Amps | 5 |
|---|---|
| Volts | 82 |
| Watts | 410 |
Photometrics | |
| Candlepower | 1100 |
|---|---|
| Color Temperature | 3400 |
| Light Center Length (LCL) | 1.25" (31.8mm) |
| Lumens | 13500 |
Physical Characteristics | |
| Base | G5.3 |
|---|---|
| Bulb Shape | T3.5 |
| Max Overall Length (MOL) | 2.26" (57.5mm) |
Operating Characteristics | |
| Life Hours | 38 |
|---|---|
General Information | |
| Lamp Code | GKT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Related Categories | Halogen Capsule Bi-Pin |
T3.5 Shape | |
 | |
| Diameter Designation | 3.5/8" |
|---|---|
| Glass Diameter | 7/16" (0.4375") |
| Shape Code | T |
| Shape Classification | Tubular |
G5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Apollo | GKT | GKT | |
