GLA ANSI Code

GLA ANSI is a T6 lamp with a G9.5 base operating at 575 watts and 115 volts. It has a color temperature of 3100 Kelvin. It has a Clear finish. The average rated life is 1500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI GLA lamps.

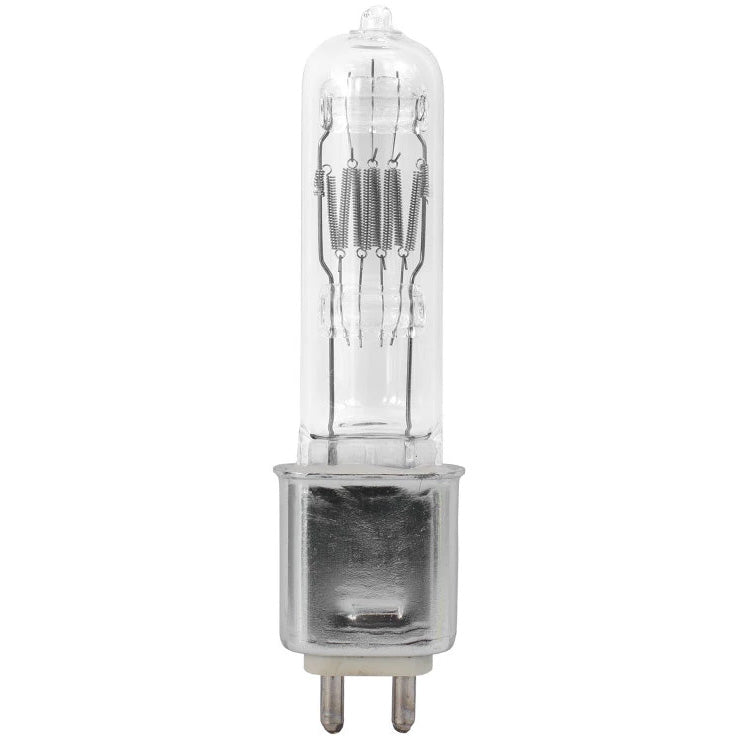

GLA Photograph

GLA

Electrical Specifications

Amps5.22
Volts115
Watts575

Photometrics

Candlepower1200
Color Temperature3100
Light Center Length (LCL)60.5mm
Lumens13500

Physical Characteristics

BaseG9.5
Bulb ShapeT6
FilamentC-13D
FinishClear
Max Overall Length (MOL)101mm

Operating Characteristics

Burn PositionAny
Life Hours1500

General Information
Lamp CodeGLA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Osram Sylvania54516GLA 575/115/2000
General Electric88424GLA Q575T6/4CL 115
Eiko10418GLA
Standard Products12262T-8/575W/115V/G9.5/6992P/GLA
Microlites115-575-28A
Canimpex115-575-28A

Equipment Used In

BrandModelType
Altman Lighting 360Q (SUPER REFLECTOR)
Altman Lighting 360Q 575W 3050K
Altman Lighting OD-600 575W 3050K
Altman Lighting S6 575W 3050K
Altman Lighting SP 575W 3050K
Altman Lighting OUTDOOR 600
Altman Lighting STAR PAR
DEXEL ACENTO ZOOM ELLIPSOIDAL 15DEG-30DEG 575W
DEXEL ACENTO ZOOM ELLIPSOIDAL 25DEG-50DEG 575W
DEXEL MODEL 50-16 ACENTO ZOOM ELLIPSOIDAL 575W
DEXEL MODEL 50-17 ACENTO ZOOM ELLIPSOIDAL 575W
Elation DESIGN PAR 575H
Philips STRAND SL 15/38
Philips STRAND SL 23/50
Selecon ACCLAIM AXIAL 18-34 ZOOMSPOT 575W 120V GLA
Selecon ACCLAIM AXIAL 24-44 ZOOMSPOT 575W 120V GLA
Selecon PACIFIC FIXED BEAM SERIES 575W GLA
Selecon PACIFIC FOLLOWSPOT 575W GLA
Selecon PACIFIC ZOOMSPOT SERIES 575W GLA
Strand Lighting SL COOLBEAM SPOTLIGHT 575W 115V GLA
Strand Lighting SL COOLBEAM SPOTLIGHT ZOOM 575W 115V GLA
Strand Lighting SL ELLIPSOIDAL-SPOTLIGHTS Stage/Studio
Techni-Lux FLEXIPAR575 BLACK 575W 115V GLA
Techni-Lux FLEXIPAR575 WHITE 575W 115V GLA
Techni-Lux PA-FLEXIPAR/B 575W 115V GLA
Techni-Lux PA-FLEXIPAR/W 575W 115V GLA
Times Square Lighting Q435 ELLIPSOIDAL 575W 115V
Times Square Lighting VARI-PAR 575W
Times Square Lighting W575 FLOOD 575W 115V GLA
