J1/15 LIF Code
J1/15 LIF is a P38 lamp with a BA20s base operating at 45 watts . It has a Clear finish. The average rated life is 1000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF J1/15 lamps.
Electrical Specifications | |
| Amps | 6.6 |
|---|---|
| Watts | 45 |
Photometrics | |
| Light Center Length (LCL) | 30 |
|---|---|
| Lumens | 585 |
Physical Characteristics | |
| Base | BA20s |
|---|---|
| Bulb Shape | P38 |
| Filament | C-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 69 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 1000 |
General Information | |
| Lamp Code | J1/15 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class J1 - Airfield Signal |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

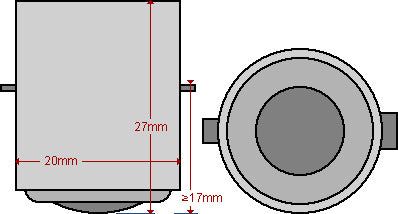

BA20s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | J1/15 | ||
