J1/37 LIF Code

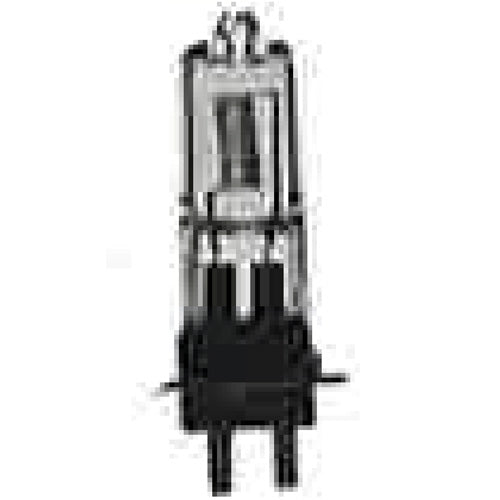

J1/37 LIF is a T12 lamp with a PG22d base operating at 200 watts . It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF J1/37 lamps.
Electrical Specifications | |
| Amps | 6.6 |
|---|---|
| Watts | 200 |
Photometrics | |
| Light Center Length (LCL) | 24 |
|---|---|
| Lumens | 4800 |
Physical Characteristics | |
| Base | PG22d |
|---|---|
| Bulb Shape | T12 |
| Filament | FC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 54 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | J1/37 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class J1 - Airfield Signal |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
FC-8 Filament | |
 | |
| Coil Type | FC - Flat Coil |
|---|---|
PG22d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | J1/37 | ||
