J1/6 LIF Code

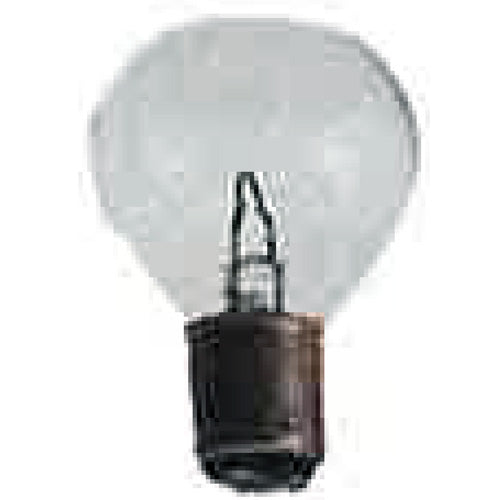

J1/6 LIF is a P38 lamp with a BA15d base operating at 36 watts . It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF J1/6 lamps.
Electrical Specifications | |
| Amps | 6 |
|---|---|
| Watts | 36 |
Photometrics | |
| Light Center Length (LCL) | 28.5 |
|---|---|
| Lumens | 560 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | P38 |
| Filament | C-2V |
| Finish | Clear |
| Max Overall Length (MOL) | 58 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 100 |
General Information | |
| Lamp Code | J1/6 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class J1 - Airfield Signal |
C-2V Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | J1/6 | ||
