J1/76IRC LIF Code
J1/76IRC LIF is a G12 lamp with a PK30d base operating at 45 watts . It has a IR Coated finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF J1/76IRC lamps.
Electrical Specifications | |
| Amps | 6.6 |
|---|---|
| Watts | 45 |
Photometrics | |
| Light Center Length (LCL) | 16 |
|---|---|
| Lumens | 800 |
Physical Characteristics | |
| Base | PK30d |
|---|---|
| Bulb Shape | G12 |
| Filament | C-8 |
| Finish | IR Coated |
| Max Overall Length (MOL) | 58 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 3000 |
General Information | |
| Lamp Code | J1/76IRC |
|---|---|
| Code Type | LIF |
| Specification Reference | Class J1 - Airfield Signal |

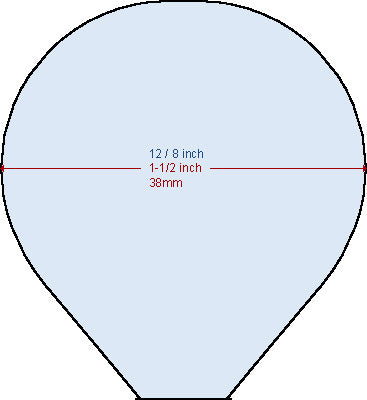

G12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | G |
| Shape Classification | Globe |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
PK30d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | J1/76IRC | ||
