J1/83 LIF Code

J1/83 LIF is a T4 lamp with a PK30d w/female flat connectors base operating at 150 watts and 120 volts. It has a Clear finish. The average rated life is 1000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF J1/83 lamps.

Electrical Specifications

Amps6.6
Volts120
Watts150

Photometrics

Light Center Length (LCL)20
Lumens3600

Physical Characteristics

BasePK30d w/female flat connectors
Bulb ShapeT4
FilamentFC-6
FinishClear
Max Overall Length (MOL)58

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours1000

General Information
Lamp CodeJ1/83
Code TypeLIF
Specification ReferenceClass J1 - Airfield Signal

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

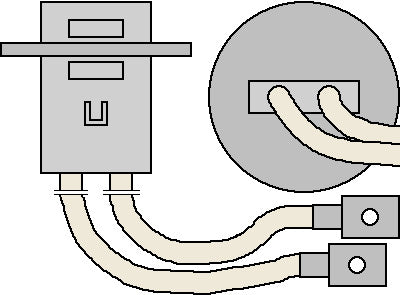

PK30d w/female flat connectors Base

PK30d w/female flat connectors

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Osram Sylvania590776.6A 64361 HLX-A 150-15 PK30D
Osram Sylvania590796.6A 64361 HLX-Z/C 150-15 PK30D
Osram Sylvania0021581150W 6.6A Pk30d Fem L2606 F
Osram Sylvania0021582150W 6.6A Pk30d Ma L2606 M
