K/22 LIF Code
K/22 LIF is a BT45 lamp with a B22d base operating at 100 watts and 120/240 volts. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF K/22 lamps.
Electrical Specifications | |
| Volts | 120/240 |
|---|---|
| Watts | 100 |
Photometrics | |
| Light Center Length (LCL) | 76 |
|---|---|
| Lumens | 1600 |
Physical Characteristics | |
| Base | B22d |
|---|---|
| Bulb Shape | BT45 |
| Filament | CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 115 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | K/22 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class K - Halogen Floodlight |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

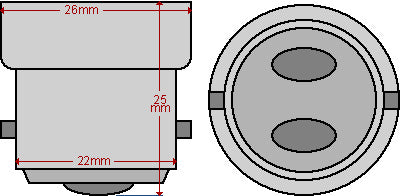

B22d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | K/22 | ||
