M/166 LIF Code
M/166 LIF is a PAR64 lamp with a GX16d base operating at 500 watts and 220/240 volts. It has a color temperature of 2900 Kelvin. It has a Stippled finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF M/166 lamps.
Electrical Specifications | |
| Volts | 220/240 |
|---|---|
| Watts | 500 |
Photometrics | |
| Candlepower | 36,000cd |
|---|---|
| Color Temperature | 2900 |
| Light Center Length (LCL) | 127±2 |
Physical Characteristics | |
| Base | GX16d |
|---|---|
| Bulb Shape | PAR64 |
| Filament | CC-13 |
| Finish | Stippled |
| Max Overall Length (MOL) | 150 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | M/166 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class M - Miscellaneous Projection |

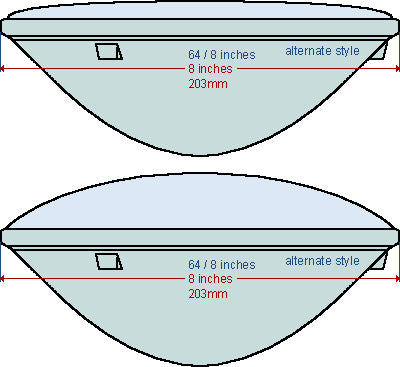

PAR64 Shape | |
 | |
| Diameter Designation | 64/8" |
|---|---|
| Glass Diameter | 8" (8.0") |
| Shape Code | PAR |
| Shape Classification | Parabolic Reflector |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|

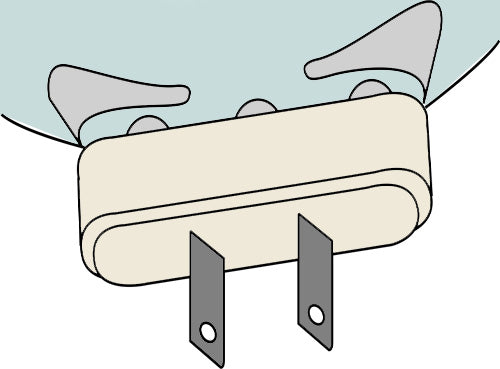

GX16d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | M/166 | ||
