M/175 LIF Code
M/175 LIF is a AR48 lamp with a GY4 base operating at 20 watts and 12 volts. It has a Gold Reflector finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF M/175 lamps.
Electrical Specifications | |
| Volts | 12 |
|---|---|
| Watts | 20 |
Photometrics | |
| Candlepower | 4,500cd |
|---|---|
Physical Characteristics | |
| Base | GY4 |
|---|---|
| Bulb Shape | AR48 |
| Filament | C-6 |
| Finish | Gold Reflector |
| Max Overall Length (MOL) | 36 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 2000 |
General Information | |
| Lamp Code | M/175 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class M - Miscellaneous Projection |
AR48 Shape | |
 | |
| Diameter Designation | 15/8" |
|---|---|
| Glass Diameter | 1 7/8" (1.875") |
| Shape Code | AR |
| Shape Classification | Aluminum Reflector |
C-6 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

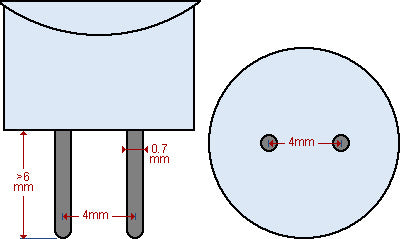

GY4 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | M/175 | ||
