M/221 LIF Code
M/221 LIF is a MR11C lamp with a GU4 base operating at 20 watts and 12 volts. It has a Dichroic finish. The average rated life is 3000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF M/221 lamps.
Electrical Specifications | |
| Volts | 12 |
|---|---|
| Watts | 20 |
Photometrics |
Physical Characteristics | |
| Base | GU4 |
|---|---|
| Bulb Shape | MR11C |
| Filament | C-8 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 42.5 |
Operating Characteristics | |
| Burn Position | Any |
|---|---|
| Life Hours | 3000 |
General Information | |
| Lamp Code | M/221 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class M - Miscellaneous Projection |

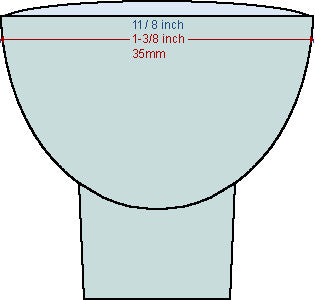

MR11C Shape | |
 | |
| Diameter Designation | 11/8" |
|---|---|
| Glass Diameter | 1 3/8" (1.375") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

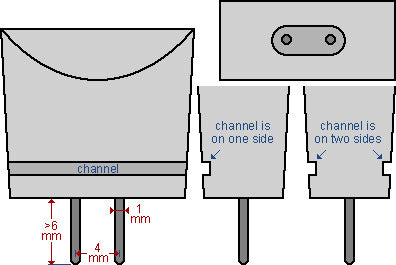

GU4 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| LIF | M/221 | ||
