T/17 LIF Code
T/17 LIF is a T21 Q lamp with a P28s base operating at 500 watts and 240 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 750 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF T/17 lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 500 |
Photometrics | |
| Color Temperature | 2950 |
|---|---|
| Light Center Length (LCL) | 55.5 |
| Lumens | 10500 |
Physical Characteristics | |
| Base | P28s |
|---|---|
| Bulb Shape | T21 Q |
| Filament | C-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 130 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 750 |
General Information | |
| Lamp Code | T/17 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class T - Theatre |
| Equivalents | FKF |

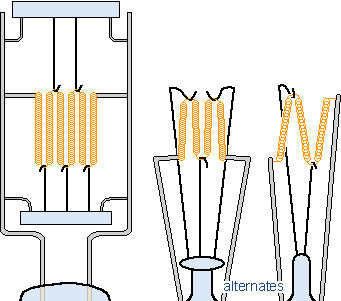

C-13 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

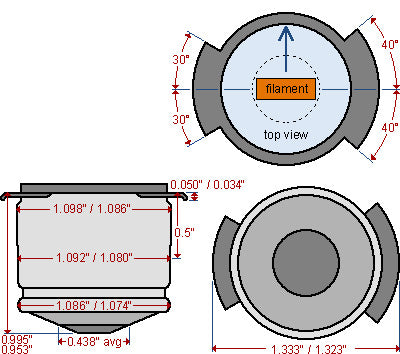

P28s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
Equipment Used In | ||
| Brand | Model | Type |
| Patt | 30 23 | Studio / Stage |
