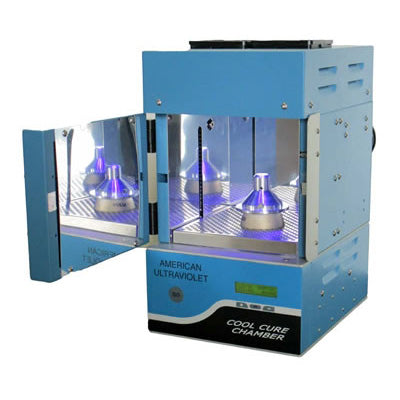

Lesco 365 LED Cool Cure Chamber System

Providing an excellent solution for flood curing applications up to 8" x 8" which require minimal part movement and minimal heat to the substrate, the Cool Cure Chamber utilizes UV LED technology and American Ultraviolet's know-how to deliver a powerful and cost effective curing chamber on the cutting edge of the industry.

Boasting lower energy consumption and up to 50% higher output than competitive units, the Cool Cure UV LED Chamber is the most powerful, effective, and efficient product of it's kind. What else would you expect from American Ultraviolet? It's all we do. Since 1960.

Specifications

• Powerful 365nm UV LED flood curing system
• 8"W x 8"D (20cm x 20cm) curing chamber
• Dimensions:
• 9.6"W x 12.2"D x 16.5"H
• (24.5cm x 31cm x 42cm)
• Programmable timer
• Instant On/Off
• 15,000+ hour LED life
• Electrical: 90-260VAC, 50/60Hz
• Safety interlock
• 2 year warranty

Benefits

• No lamps, reflectors, or filters to change
• I/O option available
• Minimal IR wavelengths
• Compact and lightweight, yet powerful
• Available in 365, 385, 390, and 405nm wavelengths
• Energy efficient - Instant on/off means it only runs when needed, eliminating down time in "standby" mode
• Environmentally friendly - Like all UV systems, the accompanying chemistry does not produce VOC's

System includes:

• 365 nm LED module installed
• Digital PCM W/ Solid State Ballast
• Cabinet with built-in cooling fan with rear exhaust
• Manual or Timer Cure Cycle Mode
• Accumulating hour meter to record chamber usage
• Solid Door with UV exposure safety interlock
• Air-cooled cure area with ventilation
• Adjustable cure surface to accommodate assemblies up to 6” in height
• Overal dimensions: 9.6"W X 12.2"D X 16.5"H
• Curing Chamber dimensions: 8" W x 8"D
• Powder coaded blue
• Crating

About Lesco UV

Based in California, Lesco UV is a manufacturer of ultraviolet curing equipment. The company offers a full line of traditional and LED curing devices, including conveyors, chambers, spot curing, and handheld/surface equipment. Lesco UV is one of the premier names in the ultraviolet curing industry.
