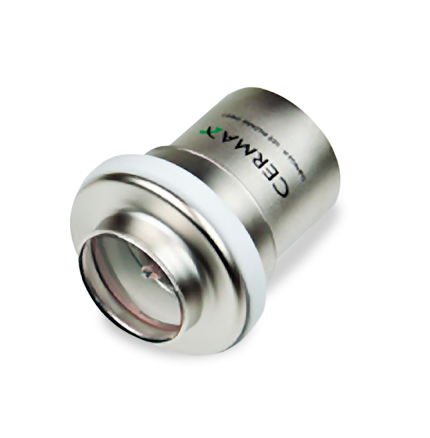

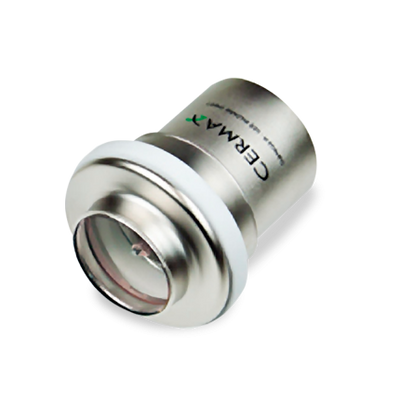

    Excelitas ME400BF - 400W - 14.5V - Parabolic Ceramic Xenon

    Excelitas ME400BF - 400W - 14.5V - Parabolic Ceramic Xenon

    • $669.00
    Often In Stock. Call to Confirm.

    Cermax® VQ Metal-body Parabolic Lamps are the premiere solution for medical lighting applications where performance and reliability are paramount. Our Cermax® VQ Metal-body line delivers the unparalleled color performance that has made Cermax Xenon the medical industry standard for over 20 years.

    Cermax VQ Xenon lamps are compact, metal- body short-arc lamps. With an internal, precision cut reflector body with metal-to-sapphire and ceramic seal construction, Cermax VQ lamps are a safe and very compact alternative to conventional quartz bubble Xenon lamps and are the recommended lamps for new Xenon illumination designs.

    Utilizing an integrated parabolic reflector, Cermax lamps produce high intensity, collimated light. This leaves the optical designer with the utmost flexibility in choice of post-processing, light-shaping optics.

    Due to the Xenon lamps’ broad color spectrum, the lamp is filtered to emit either visible, UV or IR light depending on application or usage.

    Standard Cermax parabolic reflector metal body lamps have operating power ranges from 300 to 400 Watt.

    • Reflector Type: Parabolic
    • Body Type: Metal
    • Total Visible Output: 7500 Lumens
    • Power - Nominal: 350 to 425 Watts
    • Power - Range: 350-425 Watts
    • Current - Range: 25-32 Amps (DC)
    • Minimum Ignition Voltage: 23 kilovolts (system dependent)
    • Operating Voltage - Nominal: 14.5 Volts (DC)
    • Operating Voltage - Range: 13-16 Volts (DC)
    • Lifetime: 1000 hours typical
    • Temperature: 150° C (maximum)
    • Radiant Output: 100 Watts
    • UV Output (<390 nm): 6.0 Watts
    • IR Output (>770 nm): 55 Watts

    About Excelitas Technologies

    Excelitas manufactures the Ceramax® line of ceramic xenon lamps, a leading technology used in diagnostic and surgical endoscopes, surgical microscopes, and surgical headlamps. Their products can also be found in high performance video and home theater projectors. Excelitas was founded in 2010, and continues to expand the markets and applications their technology serves.

    Color Temperature6000K
    Current25-32 Amps (DC)
    IR Output (>770NM^3)55
    Maximum Operating Power150° Celsius
    Minimum Pulse Duration60 nS
    Power Range350-425W
    Radiant Output100W
    UV Output (<390NM^3)6W
    Visible Output (390-770NM^3)7500 Lumens
    Voltage Range13-16V
    Volts14.5
    Watts400
    Window Diameter (inches)1
    Window Diameter (mm)25.4

    ProLampSales Order Code4252960456836
    BrandExcelitas
    MPNME400BF
