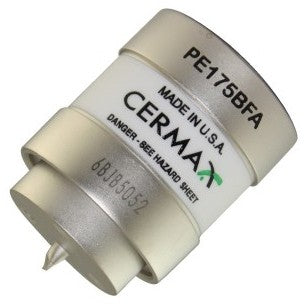

Excelitas PE175BFA - 175W - 12.5V DC - Parabolic Ceramic Xenon
The 175 Watt Cermax® Xenon lamp is well suited for designs that do not require the high intensity associated with its 300 Watt sibling. Featuring the same robust design synonymous with the Cermax family, this lamp provides a broad spectral output and the ability for the user to tune its output with catalog filters to match their desired spectral requirements.
- Reflector Type: Parabolic
- Body Type: Ceramic
- Total Visible Output: 2200 Lumens
- Power - Nominal: 175 Watts
- Power - Range: 150-200 Watts
- Current - Nominal: 14 Amps (DC)
- Current - Range: 12-16 Amps (DC)
- Ignition Voltage: 23-35 kilovolts (system dependent)
- Operating Voltage - Nominal: 12.5 Volts (DC)
- Operating Voltage - Range: 11-14 Volts (DC)
- Lifetime: 1000 hours typical
- Temperature: 150° C (maximum)
- Radiant Output: 25 Watts
- UV Output (<390 nm): 1.2 Watts
- IR Output (>770 nm): 14 Watts
Equipment Used In
- Alcon Surgical Accurus
- Birtcher/Solos ELS2
- Birtcher/Solos GS9205
- Birtcher/Solos GS9250
- Luxtec 9175
- Luxtel Isolux XSB 180 Illuminator
- Olympus 58122
- Olympus CLV-A
- Olympus XLS
- Olympus Y1176
- Olympus XLS 175
- Karl Storz 201315-20 Nova
- Karl Storz 20132020
- Karl Storz 20132026
- Karl Storz 20132126
- Karl Storz 615B
- Karl Storz 615C
- Karl Storz 615XE
- Karl Storz 615XES
- Sunoptics Cuda Solarmaxx 180 SSX180ST
- Sunoptics Cuda Titan 180 TITAN180ST
- Sunoptics Cuda XLS180
- Woodbine Solos GS9270
- Woodbine Solos GS9480/81
- Zeiss Superlux 175
About Excelitas Technologies
Excelitas manufactures the Ceramax® line of ceramic xenon lamps, a leading technology used in diagnostic and surgical endoscopes, surgical microscopes, and surgical headlamps. Their products can also be found in high performance video and home theater projectors. Excelitas was founded in 2010, and continues to expand the markets and applications their technology serves.
|Arc Gap (inches)||0.045|
|Arc Gap (mm)||1.14|
|Cathode Defocus 'D' (inches)||0.003|
|Cathode Defocus 'D' (mm)||0.08|
|Current||14 Amps (DC)|
|Current Range||12-16 Amps (DC)|
|IR Output (>770NM^3)||14|
|Maximum Operating Power||150° Celsius|
|Peak Intensity (Candelas)||3|
|Rated Life Hours||1000|
|UV Output (<390NM^3)||1.2W|
|Visible Output (390-770NM^3)||2200 Lumens|
|Voltage Range||11-14V (DC)|
|Window Diameter (inches)||1|
|Window Diameter (mm)||25.4|
|ProLampSales Order Code||4252960981124|
