Atlantic UV 05-0191A1 - 4-Pin Lamp Socket - 1 Meter Lead Wire
Atlantic UV Minimum Order Amount: $75.00

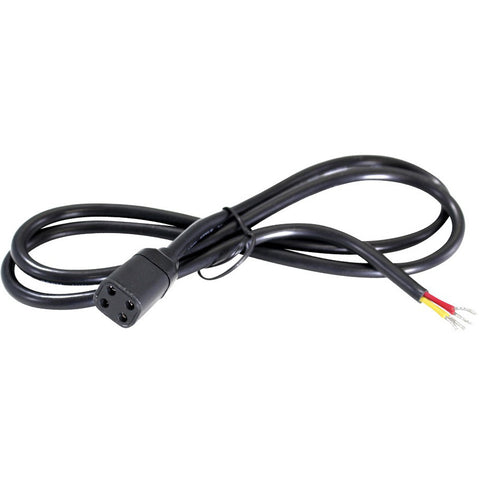

This product is an Atlantic Ultraviolet Lamp Socket. It has a part number of 05-0191A1.

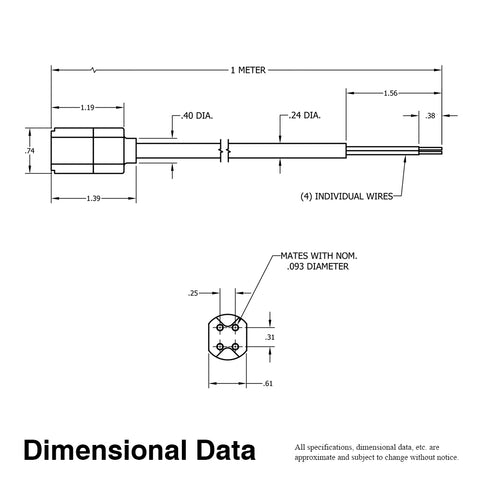

For full specifications, please see Dimensional Data image on this page. All specifications are approximate and subject to change without notice.
Features
- 4 Pin Socket
- 1 Meter (3.28 Feet) Lead Wire (18 AWG)
About Atlantic Ultraviolet
Atlantic Ultraviolet was founded in 1963, manufacturing germicidal ultraviolet fixtures and equipment. Their products utilize germicidal UV lamps to destroy bacteria, mold, and viruses in the air and on surfaces. Atlantic Ultraviolet produces their own line of UV lamps, and continue to provide industry leadership in applied UV technology with increased research and development.
| Height | 0.74" |
|---|---|
| Jacket Stripped | 1.56" |
| Length | 1 m |
| Pin Distance | .25" horizontal, .31" vertical (Mates with Nominal .093 Diameter. See Dimensional Data image for details.) |
| Width | 0.61" |
| Wires Stripped | 0.38" |
| Brand | Atlantic Ultraviolet |
|---|---|
| MPN | 05-0191A1 |
| HS Code | 853661 |
