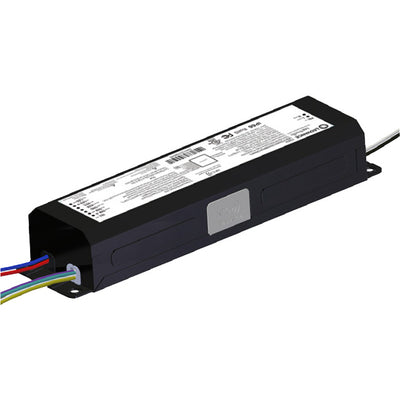

Ledvance tapTronic LEDrv100UNV1250DIMAUX12P6NFC Constant Current LED Driver - 120-277V - 50-185VDC Output Volts - 0-10V Dimming - Programmable
Field-Programmable, Near-Field Communication (NFC) LED Drivers. This family covers linear, compact, and outdoor drivers. These drivers are available in the industry’s most desirable wattages. Our programming software app can be downloaded in seconds on any smartphone. The programming is easy and simple to follow.
Benefits and Features
- Field-programmable via free app
- Programming does not require driver to be powered up
- Quick and easy output customization:
- Current
- Dim to off - dim range %
- Constant lumen output
- Soft start
- End of life
- Thermal protection
- Compact: 25W and 40W both F-can and J-can housing style
- Linear: 36W, 55W and 88W
- Outdoor: 100W and 180W
Applications
- Area lights
- Industrial highbays
- Wall packs
- Décor landscape
- Cobraheads
- Bollards
- Hazardous locations
| Certifications | cULus, FCC, IP66, RoHS |
|---|---|
| Dimming | 0-10V |
| Dimming Range | 10-100% |
| Driver Type | Constant Current |
| Input Frequency | 50/60 Hz |
| Input Volts | 120-277 |
| Location Rating | Damp and Wet |
| Output Current Range | 350-1250mA |
| Output Volts | 50-185 VDC |
| Warranty | 5 Years |
| Watts | 100 |
| Brand | Ledvance |
|---|---|
| Series | tapTronic |
| MPN | 75854 |
| Model | LEDrv100UNV1250DIMAUX12P6NFC |
| UPC | 046135758546 |
| HS Code | 854239 |
