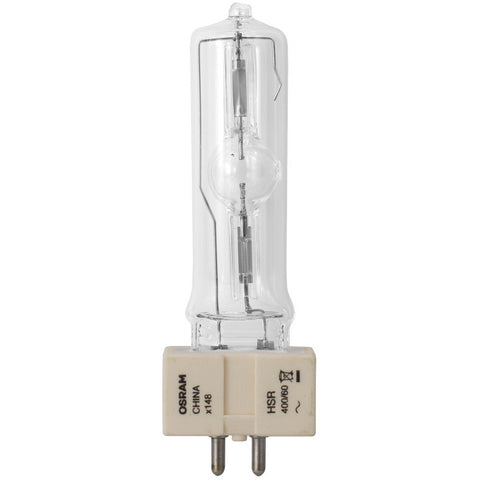

Osram 54102 HSR 400/60 - 400W Metal Halide - 6000K - GX9.5 Base
400 watt, metal halide, single-ended, no hot restart
The rugged design of the OSRAM HSR and HSD lamps provide optimal thermal and mechanical stability for simple handling and safe operation. HSR lamps are highly effecient and bright for entertainment effects, while the HSD family provides similar benefits with increased lifetimes for architectural effect lighting. The HSD family also includes a 300W lamp with the special OSRAM Lok-It! base design for safe and easy installation from the back of the fixture.
Product features and benefits
- Proven, reliable technology for entertainment and architectural fixtures
- Designed with an outer quartz jacket providing compact and rugged construction
- High luminous efficacy of up to 90 lumens/watt
Areas of application
- Concert lighting
- Club & Disco
- Architecture & Architainment
Cross Reference Part Numbers
- PHILIPS MSR 400 0014626 261388
About Osram
Osram provides businesses and consumers with a wide portfolio of products, encompassing many types of technical and professional lighting applications. These include automotive lighting, complete "Smart" digital systems, advancted LED chips, speciality light bulbs and fixtures, and more. Osram serves both consumer and professional markets, and manufactures traditional lighting products, as well as LED lamps and luminaires.
| Average Luminance (cd/cm2) | 20000 cd/cm2 |
|---|---|
| Average Rated Life | 1000 h |
| Base | GX9.5 Bipin Prefocus |
| Bulb Shape | T21 |
| Color Temperature | 6000 |
| Cooling | Convection |
| CRI | 85 |
| Current (A) | 6.9 A |
| Diameter d (in) | 0.906 in |
| Electrode Gap - cold (mm) | 5 mm |
| Hot Restart | No |
| Lamp Type | SINGLE END |
| Luminous Flux | 33000 lm |
| Maximum Base Temperature (C) | 230 C |
| Operating Position | Any |
| Volts | 67 |
| Watts | 400 |
| Brand | Osram |
|---|---|
| Series | HSR |
| MPN | 54102 |
| Model | HSR 400/60 |
| UPC | 4008321631503 |
| HS Code | 853932 |
Documents
There are currently no videos for this product.
Optional Parts & Accessories
Alternative Products
Categories: Metal Halide High Pressure Bi-Pin, Osram, Osram HSR / HSD
